metal hardness tester

metal  hardness tester application: Leeb hardness tester is for metal. Die cavity of molds,Inspection of bearing and other mass produced parts on a production line,Failure analysis of pressure vessel, steam generator and
other equipment,Inspection of installed machinery, permanent parts of assembled systems and heavy work pieces.Rapid testing in large range and multi-measuring areas for large-scale work piece

Leeb hardness tester HT6561 Leab hardness testerHL200    leeb hardness tester  Mh180      leeb hardness tester  Mh320  Shore hardness tester: HT6510 A, C , D

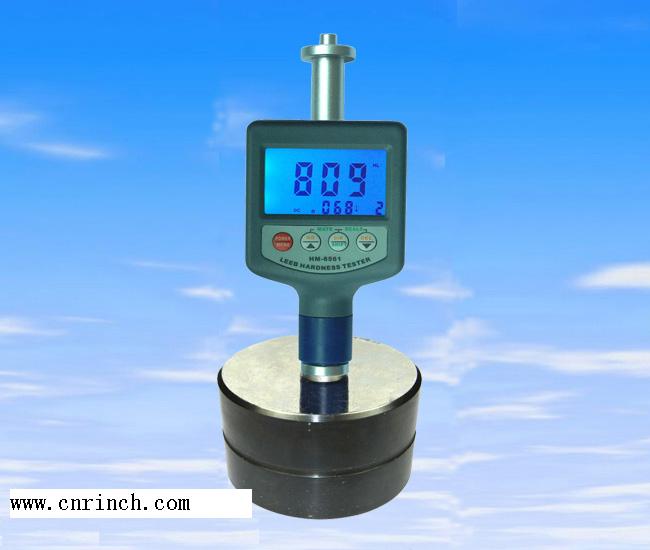

Leeb hardness tester ( new)  HT6561

Product synopsis
1.1 Typical Applications
* Die cavity of molds
* Inspection of bearing and other mass produced parts on a
production line
* Failure analysis of pressure vessel, steam generator and
other equipment
* Inspection of installed machinery, permanent parts of
assembled systems and heavy work pieces.
* Testing surface of a small hollow space
* Material identification in the warehouse of metallic materials
* Rapid testing in large range and multi-measuring areas for
large-scale work piece
1.2 Testing Features
* Palm size for narrow space.
* Test at any angle, even upside down.
* Direct display of hardness scales HRB, HRC, HV, HB, HS,
HL.
* Large memory could store 250 groups including single
measured value, impact direction, material and hardness
scale etc.
* User recalibration function allowed.
* Can communicate with PC computer for statistics and
printing by the optional cable.
* Manual or automatic shut down.
* Low battery indication.
1.3 Technical Specifications
Display: 12.5mm LCD with back light
Accuracy: Display error ±0.8% at LD=900
Measuring range: 200-900L
Conversion: HL-HRC-HRB-HB-HV-HSD
Materials: 9 different common materials
With RS232C interface
Memory: 250 data can be stored and re-readable
Impact device: D Will handle the majority of hardness testing
applications. Weight: 75g
Power supply: 2x1.5V AAA size battery
Dimension: 146×65×36mm
Weight: 130g (not including batteries)
Working temperature: - 10℃~+50℃
Storage temperature:- 30℃~+
