Geology compass


pocket compass : DQY-1

Detailed Product Description

1.Metal construction
2.Measure direction,obliquity,gradient,upright,horizontal
3.Worldwide use
4 professional compass

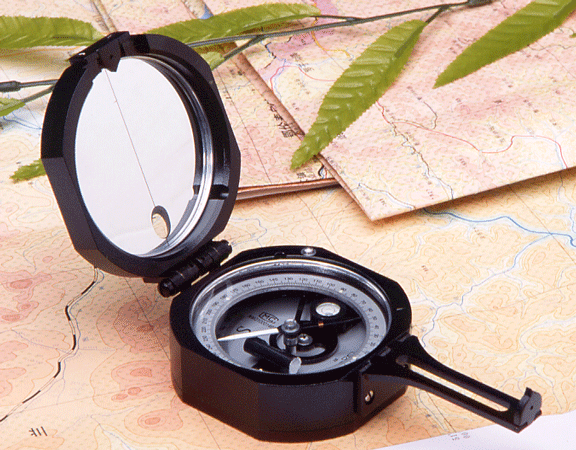

DQY-1 Pocket compass

1.Made of metal construction

2.Compass with liquid-filled

3.To measure direction,obliquity,gradient,upright,horizontal

4.Used in geology perambulation,colliery and other mine exploitation,military training.

Main specification
ItemSpecifications
Damping time of needle30-60s
Graduation Circle 0°~360°
Dial scale 1°
The reading error ≤ 0.5°
Precision of long air level 15′±5′/2mm
Precision of circle air level 30′±5′/2mm
ColorBlack
MaterialAluminium alloy crust
Size85×73×35(mm)
Weight 0.27kg

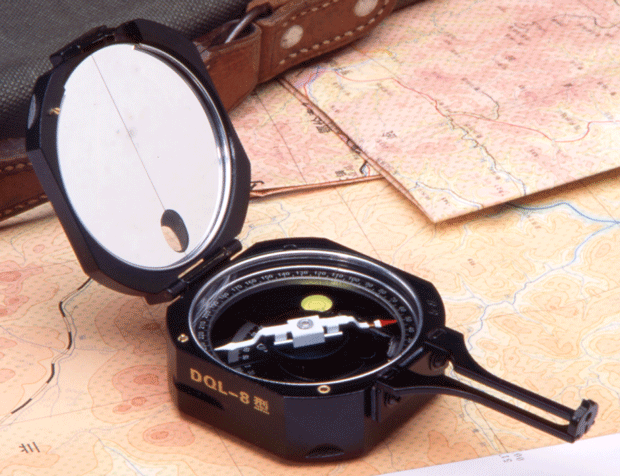

Geology compass: DQL-8

Detailed Product Description

1.metal body
2 high precision
3 print logo allowed
4 size:80*70*35mm
5 It can measure direction, obliquity, gradient,ect

Model:DQL-8

 The Compass Model DQL-8 is a necessary measuring instrument for geology survey ,colliery,other mine exploitation and military training..It can  measure direction, obliquity, gradient, upright, milemeter, horizontal etc.

This compass have a tripod (see the picture). you can only order the compass and you also can purchase the full set.

Packing :

*50Pcs/Ctn

* 435*310*215mm

*N.W/G.W.: 15kg/18kg



Specification



Product Name:high-class Professional Military Lensatic compass with mirror,military compass,metal compass


Main specification
Itemspecification
Damping time of needle<15s
Graduation circle0°~360°
Dial scale
Precision of long air level20' ± 5'/2mm
Precision of circle air level30' ± 5'/2mm
Reading error≤0.5°
ColorBlack
MaterialAluminium alloy crust
Size80×70×35mm
Weight0.24kg


Geology compass: DQL-11

Detailed Product Description

1 Hith precision with reflector
2 allow to print logo
3 size :77*70*31mm
4 marine and malitary compass
5 professinal toll



Characteristics:

 DQL-11 is an instrument with a close structure, high precision and stable property. And it's small in size, light in weight and easy to carry.Used in geology perambulation,mine exploitation,colliery and military training.

Multifunction:

 Professional insturment and high precision .It can survey geologic crew,direction of strike,inclination,the angle of inclination,etc.



Technical Data:

Damping time of needle               30-60s

Dial scale                                      1°

The reading error                          ≤0.5°

Precision of long air level              15'±5'/2mm

Precision of circle air level             30'±5'/2mm

Size                                               77Χ70Χ31mm

Weight                                           0.22KG

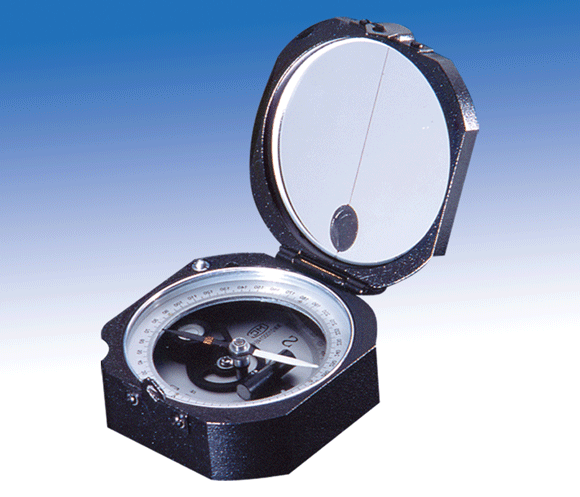

 DQL-11 Geology Compass

Pocket compass: DQL-3

Detailed Product Description

1 Appearance fineness
2 Our product got 10 patents
3 Easyer to carry
4 can print the logo you wanted


Detailed Product Description


To measure direction,obliquity,gradient,upright,milemeter,horizontal.Used in geology perambulation and mine exploitation.



Technical index

Precision of long air level15’±3’/2mm
Precision of circle air level 30’±8’/2mm
Reading error ≤0.5°
Weight 0.23Kg
Size 80×70×31mm



Packing

50pcs/ctn

Weight 17kg

Remark

We are the manufacturer for producing profesional compass and other optical instrument

We can producing the neutral products for the client and print the logo you wanted.
