In accordance with international standard ASTMD523, ASTMD1455, ASTMC346, ASTMC584, ASTMD2457, DIN ENISO2813, DIN67530, ENISO7668, JISZ8741, MFT30064, TAPPIT480, GB9754, GB/T13891, GB7706 and GB8807. Its technical parameters conform with JJG696-2002

Widely used in Floor maintenance, Surface  cleaning  quality  control, Stone  and  tile  gloss  measurement, Checking  printed  matter,  Quality control  of  paint  and  ink,  Polished metal surface ,measurement (chrome plating),    Inspection    of paint protection and waxing, Auto-body paint inspection,Surface  inspection
of  plastic moldings, Evaluation of detergents    and  washers,Checking masonry   and washers, Checking building  exteriors.

Model No:RCGM-01

TECHNICAL SPECIFICATIONS
Display:4 digits backlit LCD
Measuring geometry: 60 Degrees
 Range: 0.1 to 200   gloss units
 Accuracy:±1.0 gloss unit
( against reference standard )
 Resolution: 0.1 gloss unit
 Repeatability: ±0.5 GU(0 ... 99.9)
 Measuring area: 7x14mm ellipse
 Data memorized: 254groups
 Data output: RS 232 C serial interface
 Power supply:  battery:4×1.5VAAA
  Dimensions:
  main unit:156 x67x28mm
 Separate sensor:58x28x108mm
   Weight:about  305g ( including fitted batteries )
   Working condition:
Temperature range  0 - 40℃
 Humidity up to   85%

Widely used in Floor maintenance, Surface cleaning quality control, Stone and tile gloss measurement, Checking printed matter, Quality control of paint and ink, Polished metal surface ,measurement (chrome plating), Inspection of paint protection and waxing, Auto-body paint inspection,Surface inspection
of plastic moldings, Evaluation of detergents and washers,Checking masonry and washers, Checking building exteriors.
Model No:RCGM-02
TECHNICAL SPECIFICATIONS
Display:4 digits backlit LCD
Measuring geometry: 20/60 Degrees
Range: 0.1 to 200 gloss units
Accuracy:±1.0 gloss unit
( against reference standard )
Resolution: 0.1 gloss unit
Repeatability: ±0.5 GU(0 ... 99.9)
Measuring area: 7x14mm ellipse
Data memorized: 254groups
Data output: RS 232 C serial interface
Power supply: battery:4×1.5VAAA
Dimensions:
main unit:156 x67x28mm
Separate sensor:58x28x108mm
Weight:about 350g ( including fitted batteries )
Working condition:
Temperature range 0 - 40℃
Humidity up to 85%

Widely used in Floor maintenance, Surface cleaning quality control, Stone and tile gloss measurement, Checking printed matter, Quality control of paint and ink, Polished metal surface ,measurement (chrome plating), Inspection of paint protection and waxing, Auto-body paint inspection,Surface inspection
of plastic moldings, Evaluation of detergents and washers,Checking masonry and washers, Checking building exteriors.
Model No:RCGM-03
TECHNICAL SPECIFICATIONS
Display:4 digits backlit LCD
Measuring geometry:20/60/85 Degrees
Range: 0.1 to 200 gloss units
Accuracy:±1.0 gloss unit
( against reference standard )
Resolution: 0.1 gloss unit
Repeatability: ±0.5 GU(0 ... 99.9)
Measuring area: 7x14mm ellipse
Data memorized: 254groups
Data output: RS 232 C serial interface
Power supply: battery:4×1.5VAAA
Dimensions:
main unit:156 x67x28mm
Separate sensor:58x28x108mm
Weight:about 305g ( including fitted batteries )
Working condition:
Temperature range 0 - 40℃
Humidity up to 85%

1. Brief Introduction
The technology parameter of RC-038 Glossmeter Instrument is complete according with state standard GB9754-88、GB9966.5 and international standard ISO2813, all items of the performance meet the first class work requirements of state JJG696-2002 (Lens Luster Degree Instrument Measure Test Regulations) .
2. Applications
The surface luster measure for printing ink, paint, bake lacquer, coating and woodwork
The surface luster measure for construction decoration materials: marble; granite; glass chemical polishing brick and pottery brick
The surface luster measure for plastic and sheet
The surface luster measure for other non-metal materials
3. Instrument Characteristics
Fine, light stylish appearance, easy to carry
Completely intelligentized design, single key operation, convenient to use
Automatic adjustment, no need to be hand adjustment
Multi-angles, choose what you want
Long life-span lamp- house, no need to change
Precise measure, excellent repetition performance
LCD digital display
There is buzz sound during operation
Have electrical source pressure shortage indication function
Turn off automatically
USB interface, can save 3580 datas
4. Technology parameter
Measure range: 0-200GU
Stability: <±0.4 GU/30Min
Value error: <±1.2GU
Power: 1.5V*2
Projecting angle: 60°
Environment temperature: 0-40℃
Relative humidity: ≤ 85%
Standard panel dimension: 95×40mm
5. Display instructions
∵ “GU”--- luster unit
∵“CAL? ”--- adjustment prompt
∵ “select”--- choice prompt
∵“Battery Lo ”---low battery voltage, prompt to change battery
“clear OK”-----clear the save datas.
6. Directions
Press the red key, the instrument starts working when there is displaying in the liquid crystal screen;
When the instrument prompts"adjustment operation" ,“CAL?”is displaying in the screen, make the instrument measure window pointing at the adjustment panel, press the yellow key to confirm adjustment operation, the instrument identify the adjustment panel automatically, and adjust automatically , there is buzz sound after finishing it;
After finishing adjustment operation, the instrument is entering into the measure state. Put the instrument on the measured sample, appoint the measure window to the measured object, press the yellow key, the instrument starts to measure, the luster degree value of the measured object will display on the screen while there is buzz sound, please note that the sample should be leveled off;
The measure state.press“yellow key” 3 sec,display“clear ok",finish the clear operation
The instrument can be turned off with hand, press “red key”, it is in the close state, there is nothing displaying on the screen; if there is no measure operation in the instrument for 5 minutes, it will turn off automatically.
7. Matters required attention
It should avoid strong light direct radiation; or it will affect the measure precision.
The standard panel of the instrument should be kept clean, please do not touch the surface with fingues. If there is dirt on the surface, the measure precision will be affected. Wipe it with lens cloth or absolute alcohol.
When the battery is running out, the instrument will display"Battery lo" on the screen, which needs to change battery. Open the battery cover, replace the old battery with the new one, please pay attention to the joint line polarity. The battery should be changed when it runs up, otherwise, it stored for a long time may flow the liquid which cause damage of the instrument. It should be taken out and keep proper if it is not used for a long time.
8.Services
This instrument has one-year quality guarantee, maintenance for all life. If there are any problem of this product, please contact the dealer in time.

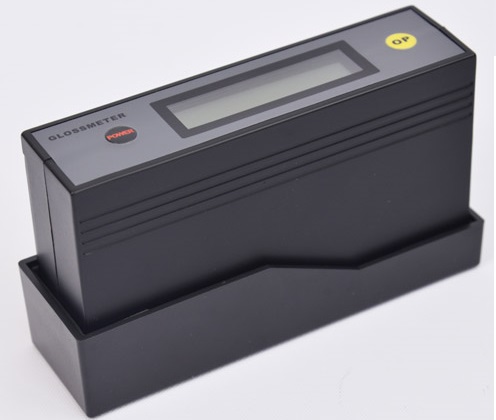

1. Brief Introduction
The technology parameter of RC-048 Glossmeter is complete according with state standard GB9754-88、GB9966.5 and international standard ISO2813, all items of the performance meet the first class work requirements of state JJG696-2002 (Lens Luster Degree Instrument Measure Test Regulations) .
2. Applications
The surface luster measure for printing ink, paint, bake lacquer, coating and woodwork
The surface luster measure for construction decoration materials: marble; granite; glass chemical polishing brick and pottery brick
The surface luster measure for plastic and sheet
The surface luster measure for other non-metal materials
3. Instrument Characteristics
Fine, light stylish appearance, easy to carry
Completely intelligentized design, single key operation, convenient to use
Automatic adjustment, no need to be hand adjustment
Multi-angles, choose what you want
Long life-span lamp- house, no need to change
Precise measure, excellent repetition performance
LCD digital display
There is buzz sound during operation
Have electrical source pressure shortage indication function
Turn off automatically
USB interface, can save 1193 datas
4. Technology parameter
Measure range: 0-200GU
Stability: <±0.4 GU/30Min
Value error: <±1.2GU
Power: 1.5V
Projecting angle: 20°60°85°
Environment temperature: 0-40℃
Relative humidity: ≤ 85%
Standard panel dimension: 95×40mm
