Isolierungs-Prüfvorrichtung AR907+
|
Steuerpflichtige Spannung |
50V /100V /250V /500V/1000V |
|
Genauigkeit |
+/-5%rdg +/- 5dgt |
|
DC/AC Spannungsprüfung |
30 zu 600V |
|
Entschließung |
1.0V |
|
Überlastungs-Schutz |
Wechselstrom 1200V /10 an zweiter Stelle |
|
Widerstandsspannung |
Wechselstrom 8320V /5 an zweiter Stelle |
|
Isolierungswiderstand |
1000MΩ |
|
Linie Prüfspitze |
√ |
|
USB trasmission |
√ |
|
Kurzschluss-Strom |
1.3mA |
|
Polarisationindex |
√ |
|
Saugfähige Rate |
√ |
|
 |

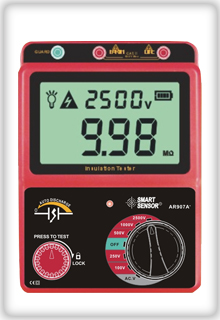

Isolierungs-Prüfvorrichtung AR907A+
|
Steuerpflichtige Spannung |
100V /250V /500V /1000V/2500V |
|
Genauigkeit |
+/-5%rdg +/- 5dgt |
|
DC/AC Spannungsprüfung |
30 zu 600V |
|
Entschließung |
1.0V |
|
Überlastungs-Schutz |
Sekunden Wechselstrom-1200V /10 |
|
Widerstandsspannung |
Sekunden Wechselstrom-8320V /5 |
|
Isolierungswiderstand |
1000MΩ |
|
Linie Prüfspitze |
√ |
|
USB trasmission |
√ |
|
Kurzschluss-Strom |
1.3mA |
|
Polarisationindex |
√ |
|
Saugfähige Rate |
√ |
|
 |
Isolationsmessgerät AR916A
|
SPECIFICATIONS |
|
|
Rated Voltage |
250V/500V/1000V/2500V |
|
Testing Range |
250V:0.0~499.9MΩ
500V:0.0~999MΩ
1000V:0.0~1.99GΩ
2500V:0.0~99.9GΩ |
|
Accuracy |
±5%rdg±5dgt |
|
DC/AC Voltage Test |
30~600V |
|
Resolution |
1.0V |
|
Overload Protect |
AC 1200V/10sec |
|
Withstand Voltage |
AC 8320V/5 sec |
|
Insulated Impedance |
1000MΩ |
|
Max. Short Circuit
Current |
1.4mA |
|
Polarization Index |
√ |
|
External DC Adapter |
√ |
|
DAR |
--- |
|
PACKING INFORMATION |
|
|
Power |
C*8 battery |
|
Product Net Weight |
1027g |
|
Product Size |
153*213*95mm |
|
Packing |
knapsack |
|
Standard Quantity Per
Carton |
3PCS |
|
Standard Carton Size |
44.5*33*28.5cm |
|
Standard Carton Gross
Weight |
6KG |
|
 |

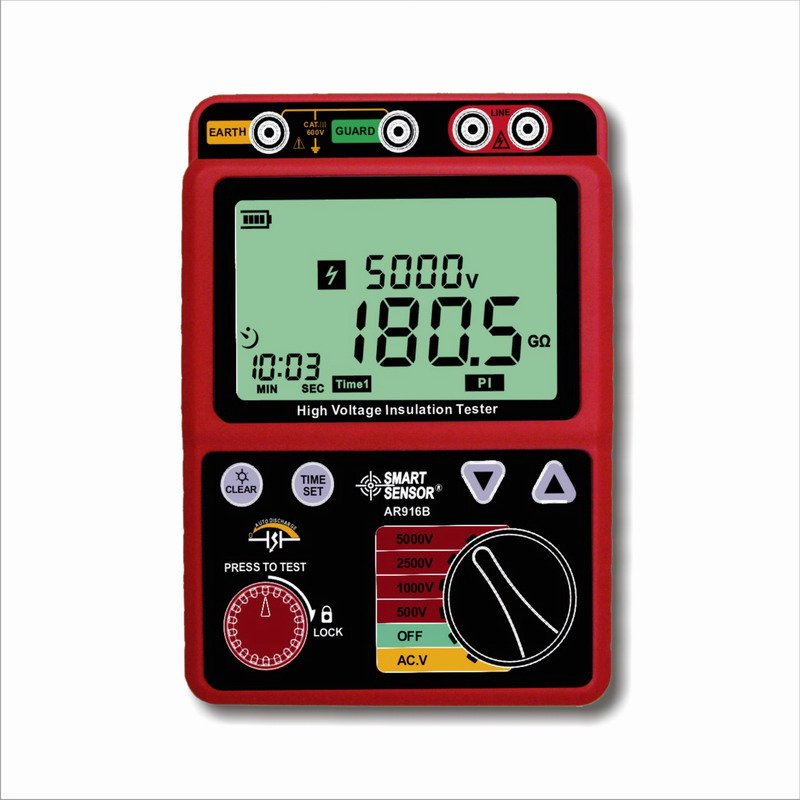

Isolationsmessgerät AR916B
|
SPECIFICATIONS |
|
|
Rated Voltage |
500V/1000V/2500V/5000V |
|
Testing Range |
500V:0.0~999MΩ
1000V:0.0~1.99GΩ
2500V:0.0~99.9GΩ
5000V:0.0~1000GΩ |
|
Accuracy |
±5%rdg±5dgt |
|
DC/AC Voltage
Test |
30~600V |
|
Resolution |
1.0V |
|
Overload Protect |
AC 1200V/10sec |
|
Withstand Voltage |
AC 8320V/5 sec |
|
Insulated Impedance |
1000MΩ |
|
Max. Short
Circuit Current |
1.4mA |
|
Polarization
Index |
√ |
|
External DC
Adapter |
√ |
|
DAR |
--- |
|
PACKING INFORMATION |
|
|
Power |
C*8 battery |
|
Product Net
Weight |
1027g |
|
Product Size |
153*213*95mm |
|
Packing |
knapsack |
|
Standard Quantity
Per Carton |
3PCS |
|
Standard Carton
Size |
44.5*33*28.5cm |
|
Standard Carton
Gross Weight |
6KG |
|
 |
Isolationsmessgerät AR917
|
SPECIFICATIONS |
|
|
Rated Voltage |
250V~5000V |
|
Testing Range |
250V:0.0~499.9MΩ
500V:0.0~999MΩ
1000V:0.0~1.99GΩ
2500V:0.0~99.9GΩ
5000V:0.0~1000GΩ |
|
Accuracy |
±5%rdg±5dgt |
|
DC/AC Voltage Test |
30~600V |
|
Resolution |
1.0V |
|
Overload Protect |
AC 1200V/10sec |
|
Withstand Voltage |
AC 8320V/5 sec |
|
Insulated Impedance |
1000MΩ |
|
Max. Short Circuit Current |
1.4mA |
|
Polarization Index&DAR |
√ |
|
External DC Adapter |
√ |
|
USB Transmission |
√ |
|
PACKING INFORMATION |
|
|
Power |
C*8 battery |
|
Product Net Weight |
1027g |
|
Product Size |
153*213*95mm |
|
Packing |
knapsack |
|
Standard Quantity Per Carton |
3PCS |
|
Standard Carton Size |
44.5*33*28.5cm |
|
Standard Carton Gross Weight |
6KG |
|
 |

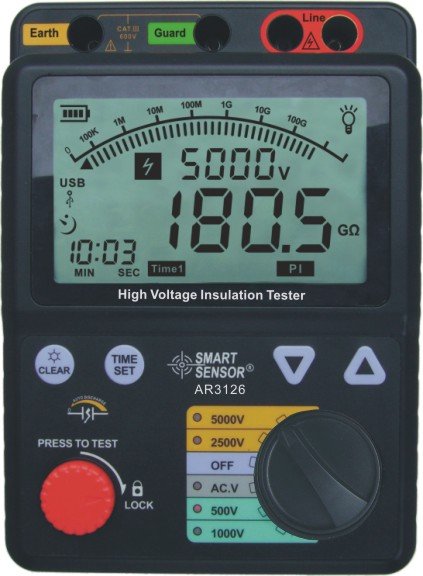

Isolationsmessgerät
AR3126
|
SPECIFICATIONS |
|
|
Rated Voltage |
500V/1000V/2500V/5000V |
|
Testing Range |
500V:0.0~999MΩ
1000V:0.0~1.99GΩ
2500V:0.0~99.9GΩ
5000V:0.0~1000GΩ |
|
Accuracy |
±5%rdg±5dgt |
|
DC/AC Voltage Test |
30~600V |
|
Resolution |
1.0V |
|
Overload Protect |
AC 1200V/10sec |
|
Withstand Voltage |
AC 8320V/5 sec |
|
Insulated Impedance |
1000MΩ |
|
Max. Short Circuit Current |
1.4mA |
|
Polarization Index |
√ |
|
External DC Adapter |
√ |
|
DAR |
√ |
|
PACKING INFORMATION |
|
|
Power |
C*8 battery |
|
Product Net Weight |
1027g |
|
Product Size |
153*213*95mm |
|
Packing |
knapsack |
|
Standard Quantity Per Carton |
3PCS |
|
Standard Carton Size |
44.5*33*28.5cm |
|
Standard Carton Gross Weight |
6KG |
|
