Spec： It can not only measure the transparency extent of coating, grease,
film, plastic products, organic products; but also the reflectivity of
solid surface (such as stereo movie screen).
* It is widely used in coatings, pigments, inks, plastics, printing and
dyeing, leather, film screenings and other industries, for product
quality or standardized inspection and management.
* It meets the international standards of ISO3906-1980 (E), ISO3905,
ISO2814, and the national standards of GB/T13452.3-92, GB9270-88,
GB5211.17-88.
* Use RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.

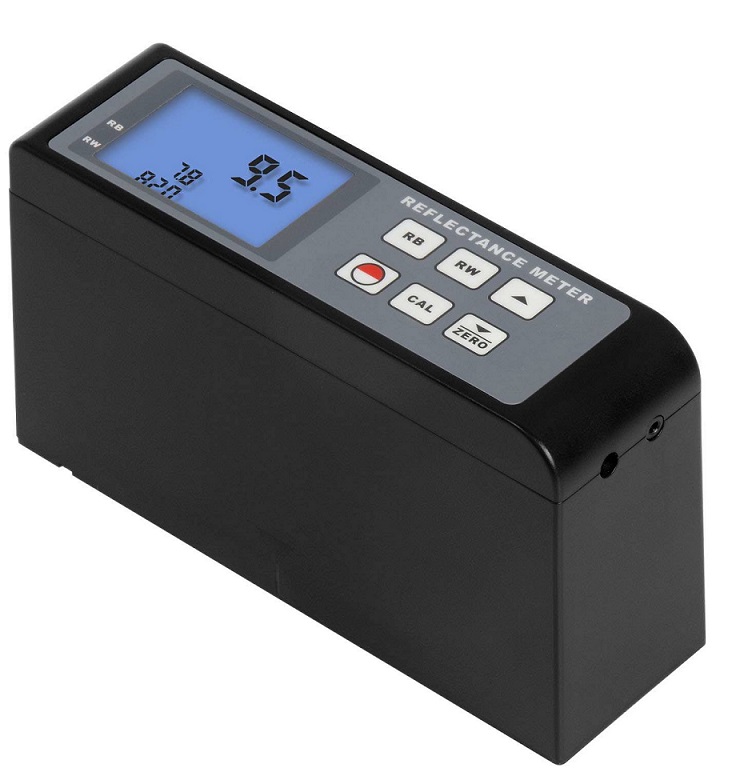

* This instrument is composed of main unit, standard board (a black one
and a white one), testing board (a black one and a white one).
* When the reflected light of the sample acts on the surface of the
photocell, an electric signal is input into the DC amplifier and
amplified for reading on the display.
|
Range
|
0~100
|
|
Resolution
|
0.1
|
|
Accuracy
|
±1
|
|
Repeatability
|
0.3
|
|
Measuring
Area
|
7x14mm
(Ellipse)
|
|
The display
data is in direct proportion to the reflected light.
|
|
The spectral
sensitivity of the instrument is approximately equal to the
product of Sc(λ) and y(λ).
|
|
Operation
Temp.
|
0~40°C
|
|
Operation
Humidity
|
<85%rh<
span="">
|
|
Power Supply
|
3.7 V
Lithium Ion Rechargeable Battery
|
|
Size
|
141x45x79mm
|
|
Weight
|
310g
(Including Batteries)
|
|
Stabdard
Accessories
|
Main Unit
|
|
Standard
Board (Black)
|
|
Standard
Board (White)
|
|
Testing
Board (Black)
|
|
Testing
Board (White)
|
|
Power
Adapter
|
|
Optic
Cleaning Cloth
|
|
Carrying
Case
|
|
Operation
Manual
|
|
Optional
Accessories
|
USB Data
Cable with Software
|
|
Bluetooth
Data Adapter with Software
|
|
