Wärmebildkamera
RC05
◆ Large Scale Population
◆ Scanning quickly
◆ Non-contact detect
◆ Auto alarm
◆ Cost effective, easy operation
◆ Stock ready for delivery
|
Item
|
|
|
Detector characteristics |
Detector type |
Uncooled
FPA microbolometer |
| Array
size/format |
160×120 |
| Image
manage |
Field of
view/min focus distance |
18°×13°/0.3m |
| Spatial
resolutions(IFOV) |
1.9mrad |
| Thermal sensitivity |
≤0.06℃@30℃ |
| Frame rate |
50/60HZ |
| Focus |
Manual |
| Electronic zoom |
2X |
| Spectral
range |
8～14μm |
| Image display |
LCD |
Built-in
high-resolution color 2.7〞LCD |
|
Measurement |
Temperature
ranges |
20℃～+50℃ |
| Accuracy |
±1℃ |
| Measurement
correction |
Automatic/manual |
| Measurement
mode |
Up to 4 movable spots. Up to 3 movable
areas(maximum, minimum and average temperatures).Line
profile. Isothem. Temperature difference.Alarm(voice,color)
|
| Color
palette |
11 palettes changeable
|
| Image
adjustment |
Auto/manual
gain and brightness |
| Setup
functions |
Date/time,
temperature unit, language |
| Emissivity
correction |
Variable
from 0.01 to 1.0 or select from listings in pre-defined material
list |
| Ambient
temperature correction |
Automatic
correction according to user input |
| Atmospheric
transmission correction |
Automatic
correction according to user input
object distance, relative humidity, ambient
temperature |
| Image
storage |
Storage
Card |
Built-in
flash memory, up to 2000 images |
| Storage
mode |
Autmatic/manual
single image saving |
| File
format-thermal |
JPEG,14 bit
thermal image with measurement data |
| Voice
annotation |
Input via
built-in microphone Up to 40 seconds of digital voice per image
stored with image |
| Laser pointer |
Laser
pointer |
Class
2,1mw/635nm(red) |
| Power
supply |
Battery
type |
Li-Ion,rechargeable |
| Battery
operating time |
3 hours
continuous operation |
| Charging
system |
Intelligent
charger or power supply adaptor (optional)online charde
|
| Power
saving |
YES |
| Extermal
power |
10～15V DC |
|
Environment |
operating
temperature |
-15℃～+50℃ |
| Humidity |
≤90%
non-condensing |
|
Encapsulation |
IP54 |
| Physical
characteristics |
Weight |
0.6Kg |
| Dimensious |
250mm×100mm×72mm |
| Interface |
Extermal
DC input |
Yes |
| Audio
output |
Yes |
| Video output |
PAL/NTSC |
| USB |
Image,measurement
data and voice
transfer to PC |
|
 |
Infrarot Kamera ◆
160x120/384x288 uncooled FPA detector
◆ High Thermal sensitivity (0.06℃@30℃)
◆ Real-time display
◆ MPEG4 network digital video transporting and saving
◆ Auto focus（RC800+）
◆ Online condition monitoring
◆ Free SDK for development
|
Item
|
RC800
|
RC800+
|
|
Detector characteristics |
Detector
type |
Uncooled FPA microbolometer |
| Array
size/format |
160×120 |
384×288 |
manage |
Field of
view/min
focus distance |
18°×13°/0.3m |
16°×12°/0.5m |
Spatial
resolutions
(IFOV) |
1.9mrad
|
0.88mrad
|
| Thermal
sensitivity |
≤0.1@30℃ |
≤0.06℃@30℃ |
| Frame rate |
50/60HZ |
| Focus |
Manual |
Autom/manual |
| Spectral
range |
8～14μm |
|
Measurement |
Temperature ranges |
-20℃～+350℃,
extend to +600℃ |
-20℃～+500℃ |
| Accuracy |
±2℃ or ±2% of reading, whichever is greater |
Measurement
correction |
Automatic/manual |
|
Measurement mode |
Up to 4 movable spots. Up to 3 movable
areas(maximum, minimum and average temperatures).Line profile.
Isothem. Temperature difference.Alarm(voice,color) |
| Color
palette |
11 paletts changeable(Iron,Rainbow,Grey
inverted,etc) |
| Image
adjustment |
Auto/manual gain and brightness |
| Setup
functions |
Date/time, temperature unit, language IP
address |
| Emissivity
correction |
Variable from 0.01 to 1.0 or select from
listings in pre-defined material list |
Ambient
temperature
correction |
Automatic correction according to user input |
|
Atmospheric transmission correction |
Automatic correction according to user input
object distance, relative humidity, ambient temperature |
storage |
Raw image
capture |
Single frame raw image manual captured via
client control software,the captured images are analyzable |
| Image
storage |
MPEG-4 images storage, single image capture,BMP |
Power
supply |
Extermal
power |
10～15V DC |
| Power
consumption |
≤6W(Normal operating at 25℃ ambient temperature
condition) |
|
Environment |
Operating
temperature |
-15℃～+50℃ |
| Humidity |
≤90% non-condensing |
|
Physical characteristics |
Weight |
≤1.09Kg(Exclude lens) |
| Dimensious |
224mm×92mm×82mm |
260mm×92mm×82mm |
|
Interface |
Extermal
DC input |
Yes |
| Video
output |
PAL/NTSC |
| Digital
video output |
RJ-45 Ethernet output,MPEG4 digital video/raw
temperature measured data
|
Remote
control
Interface |
RS485 |
| Ethernet
interface |
RJ-45 Ethernet output for thermal image, data
transfer, and camera control |
| Alarm
interface |
Open/Close:Alarm signal output |
|
 |
Wärmebildkamera
RC110
|
Item |
RC110
|
|
Detector characteristics |
Detector type |
uncooled
FPA microbolometer |
| Array
size/format |
160×120 |
| Image
manage |
Field of
view/min focus distance |
25°×19°/0.5m |
| Spatial
resolutions(IFOV) |
2.73mrad |
| Thermal
sensitivity |
≤0.08℃@30℃ |
| Frame rate |
50HZ |
| Focus |
Manual
|
| Electronic zoom |
2X 4X |
| Spectral
range |
8～14μm |
| Built-in
visual camera |
3000,000
pixels，Pic. in Pic. or full |
| Image display |
LCD |
Built-in
high-resolution color 3.6" LCD |
|
Measurement |
Temperature
ranges |
-20℃～+350℃,optional
up to +1000℃ |
| Accuracy |
±2℃ or ±2%
of reading, whichever is greater |
| Measurement
correction |
Automatic/manual |
| Measurement
mode |
Up to 5
movable spots. Up to 5 movable areas(maximum, minimum and
average temperatures).Line profile. Isothem. Temperature
difference.Alarm(voice,color) |
| Color
palette |
11 |
| Image
adjustment |
Auto/manual
gain and brightness |
| Setup
functions |
Date/time,
temperature unit, language |
| Emissivity
correction |
Variable
from 0.01 to 1.0 |
| Ambient
temperature correction |
Automatic
correction according to user input |
| Atmospheric
transmission correction |
Automatic
correction according to user input object distance, relative
humidity, ambient temperature |
| Image
storage |
Storage
Card |
Built-in flash memory, SD
card(8G), Up to 32GB |
| Storage
mode |
Autmatic/manual
single image saving |
| File
format-thermal |
JPEG,14 bit
thermal image with measurement data |
| Voice
annotation |
Input via
built-in microphone Up to 60 seconds of digital voice per image
stored with image |
| Laser pointer |
Laser
pointer |
Class
2,1mw/635nm(red) |
| Power
supply |
Battery
type |
Li-Ion,rechargeable |
| Battery
operating time |
3 hours
continuous operation |
| Charging
system |
Intelligent
charger or power supply adaptor(optional)online charge
|
| Power
saving |
YES |
| Extermal
power |
12V DC |
| Environment |
Operating
temperature |
-15℃～+50℃ |
| Humidity |
≤90%
non-condensing |
|
Encapsulation |
IP54 |
| Physical
characteristics |
Weight |
1Kg |
| Dimensious |
105mm×245mm×230mm |
| Interface |
Extermal
DC input |
Yes |
| Audio
output |
Yes |
| Video
output |
PAL/NTSC |
| SD card
|
Yes |
| USB |
Image,
measurement data and voice transfer to PC |
|
|
|
Wärmebildkamera
RC120
|
Item |
RC120
|
|
Detector characteristics |
Detector type |
uncooled
FPA microbolometer |
| Array
size/format |
384×288 |
| Image
manage |
Field of
view/min focus distance |
25°×19°/0.5m |
| Spatial
resolutions(IFOV) |
1.37mrad |
| Thermal
sensitivity |
≤0.06℃@30℃ |
| Frame rate |
50HZ |
| Focus |
Manual
|
| Electronic zoom |
2X 4X |
| Spectral
range |
8～14μm |
| Built-in
visual camera |
3000,000
pixels，Pic. in Pic. or full |
| Image display |
LCD |
Built-in
high-resolution color 3.6" LCD |
|
Measurement |
Temperature
ranges |
-20℃～+600℃,optional
up to +1200℃ |
| Accuracy |
±2℃ or ±2%
of reading, whichever is greater |
| Measurement
correction |
Automatic/manual |
| Measurement
mode |
Up to 5
movable spots. Up to 5 movable areas(maximum, minimum and
average temperatures).Line profile. Isothem. Temperature
difference.Alarm(voice,color) |
| Color
palette |
11 |
| Image
adjustment |
Auto/manual
gain and brightness |
| Setup
functions |
Date/time,
temperature unit, language |
| Emissivity
correction |
Variable
from 0.01 to 1.0 |
| Ambient
temperature correction |
Automatic
correction according to user input |
| Atmospheric
transmission correction |
Automatic
correction according to user input object distance, relative
humidity, ambient temperature |
| Image
storage |
Storage
Card |
Built-in flash memory, SD
card(8G), Up to 32GB |
| Storage
mode |
Autmatic/manual
single image saving |
| File
format-thermal |
JPEG,14 bit
thermal image with measurement data |
| Voice
annotation |
Input via
built-in microphone Up to 60 seconds of digital voice per image
stored with image |
| Laser pointer |
Laser
pointer |
Class
2,1mw/635nm(red) |
| Power
supply |
Battery
type |
Li-Ion,rechargeable |
| Battery
operating time |
3 hours
continuous operation |
| Charging
system |
Intelligent
charger or power supply adaptor(optional)online charge
|
| Power
saving |
YES |
| Extermal
power |
12V DC |
| Environment |
Operating
temperature |
-15℃～+50℃ |
| Humidity |
≤90%
non-condensing |
|
Encapsulation |
IP54 |
| Physical
characteristics |
Weight |
1Kg |
| Dimensious |
105mm×245mm×230mm |
| Interface |
Extermal
DC input |
Yes |
| Audio
output |
Yes |
| Video
output |
PAL/NTSC |
| SD card
|
Yes |
| USB |
Image,
measurement data and voice transfer to PC |
|
 |
◆
2-meter drop resistance
◆1.3 million pixels ccd image
◆ Various temperature Measurement
functions
◆ IP54
◆JPEG Storage with Voice Annotation
◆High cost-effective
|
Item |
RC110L |
RC120L |
|
Detector characteristics |
Detector type |
Uncooled FPA microbolometer |
|
Array size/format |
160×120 |
384×288 |
|
Image manage |
Field of view/min focus distance
|
25o×19o
/0.1m |
|
Spatial resolutions(IFOV) |
2.72mrad |
1.36mrad |
|
Thermal sensitivity
|
≤0.06℃@30℃ |
≤0.05℃@30℃ |
|
Frame rate |
50/60Hz |
|
Focus |
Manual |
|
Spectral range |
8～14um
|
|
Built-in visible light |
Yes |
|
Image display |
LCD display |
2.7"TFT color LCD，640×480 |
| Image adjustment |
Auto/manual gain and brightness |
|
Color palette |
Color palette 11 palettes changeable |
|
Measurement |
Temperature ranges |
-20℃～+350℃
(can expand to 650℃) |
-20℃～+650℃ |
|
Accuracy |
±2℃ or ±2% of reading, whichever is greater |
|
Measurement correction |
Automatic/manual |
|
Measurement mode
|
Up to 4 movable spots. Up to 3 movable
areas(maximum, minimum and average temperatures).Up to 3 movable
lines.Line profile. Isotherms. Temperature difference.
Alarm(voice,color) |
|
Setup functions |
Date/time, temperature unit, language
|
|
Emissivity correction |
Variable from 0.01 to 1.0 |
|
Backgroud temperature correction
|
Automatic correction according to user input |
|
Atmospheric transmission correction
|
Automatic correction according to user input
object distance, humidity and temperature |
|
Image storage |
Storage Card |
2G SD card, max 16G |
|
Storage mode |
Automatic/manual single file saving, IR and
Visual image link saving |
|
Thermal file format |
JPEG with original thermal measurement data |
|
Visual file format |
JPEG |
|
Voice annotation
|
A built-in microphone Up to 60 seconds of
digital voice clip with each cared thermal imaging |
| Laser pointer |
Laser pointer |
Class 2,1mw/635nm(red),IEC 60 285 |
|
Power supply |
Battery type |
Li-Ion, rechargeable
|
|
Battery operating time
|
3 hours continuous operation |
|
Charging system |
Intelligent charger or power supply adaptor 12V
(optional) to random charge |
| Power saving |
Auto dormancy and auto-shut down |
| Environment |
operating temperature |
-15 ℃ - +50 ℃ |
|
Storage temperature |
-25 ℃ - +60 ℃ |
|
Encapsulation |
IP54 |
|
Anti-shock |
25G ， IEC 68-2-29 |
|
Vibration resistance |
2G ， IEC 68-2-6 grade |
|
Drop resistance |
2 meters |
|
Humidity |
≤ 90% non-condensing |
| Physical characteristics |
Weight |
0.98kg |
|
Dimensious |
230mm×105mm×245mm |
|
Handrail |
Can be installed on both sides |
|
Tripod |
1/4″-20-UNC |
| Interface |
Memory card slot |
Micro SD(TF) |
|
External DC input |
Yes |
|
Video output |
Yes |
|
USB |
Mini-USB Image,measurement data transfer |
|
 |

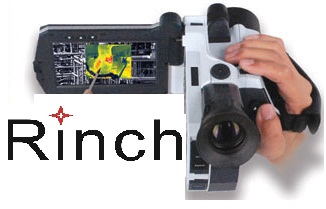

RC380 — Portable HD infrared camera
RC380 is a 640 × 480 pixel uncooled FPA infrared camera, it has a high
pixel, rotating multi-angle observation and other characteristics, its
high sensitivity, the image is clear, precise temperature measurement,
reliability, wide application in: power failure diagnosis,
petrochemicals, iron and steel, scientific research, fire, building
inspection and other fields.
Applications:
1.Electrical and mechnical industry
Security detection
Insulation failure
Loose interface detection
HVAC detective
Component detective
Repair verification
2.Building industry
Fastly scan exterior wall of the buldings
Make accurate preventive maintenance inside of the room
|
|
Technical Specifications |
|
RC380 |
|
Detector characteristics |
Detector type |
Un-cooled FPA micro-bolometer |
|
Array size/format |
640x480 |
|
Image characteristics |
Field of view/min focus distance |
25°×19°/0.3m |
|
Spatial resolution（IFOV） |
0.65mrad |
|
Thermal sensitivity |
≤0.03℃@30℃ |
|
Frame frequency |
50/60Hz |
|
Focus |
Auto/Manu electronics focus |
|
Digital zoom |
8×,continuous zoom |
|
Spectral range |
8-14um |
|
Built-in CCD camera |
5.0 million pixels, LED lights |
|
Image display |
LCD display |
5’’ High resolution color touch LCD, 800 x 480 |
|
Image |
Fast switch between infrared image and CCD image,
with fusion and picture in picture function |
|
Measurement |
Temperature ranges |
-40℃- +650℃ |
|
Accuracy |
± 2 °C or ± 2% of reading, Whichever is greater |
|
Measurement correction |
Automatic / manual |
|
Measurement mode |
Up to 10 movable spots. Up to 5 movable
areas(maximum, minimum and average temperature). movable lines. Line
profile. Isotherms. Temperature difference. Alarm(voice, color) |
|
Image control |
Color palette 11 palettes changeable |
|
Auto/manual gain and brightness |
|
Setup functions |
Date/time, temperature unit, language |
|
Emissivity correction |
Variable from 0.01 to 1.0 |
|
Background temperature correction |
Automatic corrections according to user input |
|
Atmospheric transmission correction |
Automatic correction according to user input
object distance, humidity and temperature |
|
Image storage |
Storage card |
CF card(8G) |
|
Mode |
Auto/manual saving, single thermal images and CCD
image link saving, thermal and CCD fusion saving. |
|
Thermal image format |
JPEG (with radiometric information)
MPEG4(with radiometric information) |
|
CCD image format |
JPEG、MPEG4 |
|
Voice annotation |
Input via built-in microphone up to 60 seconds of
digital voice clip per image stored with image |
|
Text annotation |
Yes |
|
Laser pointer |
Laser locator |
Class 2, 1mw/635nm(red), IEC 60 285 |
|
Power source |
Battery type |
Li-Ion, rechargeable |
|
Battery operating time |
3 hours continuous operation |
|
Battery charging mode |
Intelligent charger or power adaptor 12V(optional)
to random charge |
|
Power saving |
Auto-sleep and auto-shut down |
|
External power |
10-15V DC |
|
Environment |
Operating temperature |
-15℃-+50℃ |
|
Humidity |
≤90％ (non-condensing) |
|
Encapsulation |
IP54 |
|
Physical characteristics |
Tripod mounting |
1/4"-20-UNC |
|
Weight |
1.7kg |
|
Dimension |
245*180*150mm |
|
External DC input |
YES |
|
Video output |
PAL/NTSC |
|
Communication port |
Bluetooth;RJ45 |
|
