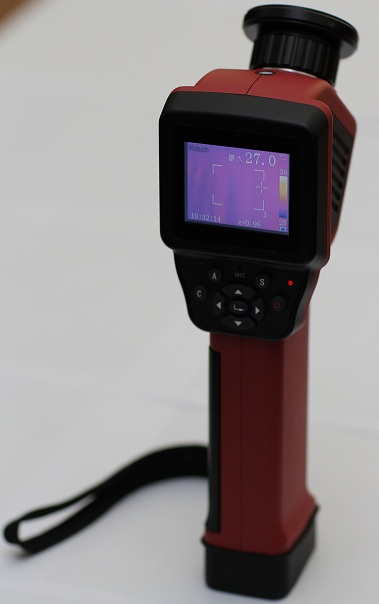

caméra infrarouge

◆ Large Scale Population
◆ Scanning quickly
◆ Non-contact detect
◆ Auto alarm
◆ Cost effective, easy operation
◆ Stock ready for delivery

Item
RC05
　Detector characteristics 　Detector type 　Uncooled FPA microbolometer
　Array size/format 　160×120
　Image manage 　Field of view/min focus distance 　18°×13°/0.3m
　Spatial resolutions(IFOV)　 　1.9mrad
　Thermal sensitivity 　≤0.1℃@30℃
　Frame rate 　50/60HZ
　Focus 　Manual
　Electronic zoom 　2X
　Spectral range 　8～14μm
　Image display 　LCD 　Built-in high-resolution color 2.5〞LCD
　Measurement 　Temperature ranges 　20℃～+50℃
　Accuracy 　±1℃
Measurement correction 　Automatic/manual
　Measurement mode
　Up to 4 movable spots. Up to 3 movable areas(maximum, minimum and average temperatures).Line profile. Isothem. Temperature difference.Alarm(voice,color)
　Color palette
　11 palettes changeable
　Image adjustment 　Auto/manual gain and brightness
　Setup functions 　Date/time, temperature unit, language
Emissivity correction 　Variable from 0.01 to 1.0 or select from listings in pre-defined material list
　Ambient temperature correction 　Automatic correction according to user input
　Atmospheric transmission correction 　Automatic correction according to user input
　 object distance, relative humidity, ambient 　
　 temperature
　Image storage 　Storage Card 　Built-in flash memory, up to 2000 images
　Storage mode 　Autmatic/manual single image saving
　File format-thermal 　JPEG,14 bit thermal image with measurement data
　Voice annotation 　Input via built-in microphone Up to 40 seconds of digital voice per image stored with image
　Laser pointer 　Laser pointer 　Class 2,1mw/635nm(red)
　Power supply 　Battery type 　Li-Ion,rechargeable　
　Battery operating time 　3 hours continuous operation
　Charging system 　Intelligent charger or power supply adaptor (optional)online charde
　Power saving 　YES
　Extermal power 　10～15V DC　
　Environment operating temperature 　-15℃～+50℃
　Humidity 　≤90% non-condensing
　Encapsulation 　IP54
　Physical 　characteristics 　Weight 　0.6Kg
　Dimensious 　250mm×100mm×72mm
　Interface 　Extermal DC input 　Yes
　Audio output 　Yes
　Video output 　PAL/NTSC
　USB 　Image,measurement data and voice
　 transfer to PC

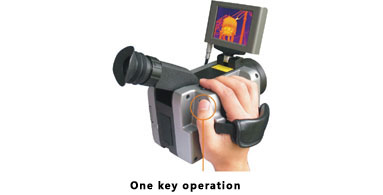

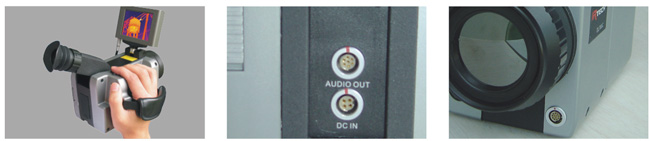

caméra infrarouge

◆ High Thermal sensitivity (0.06℃@30℃)
◆ 384x288uncooled FPA detector
◆ Auto Focus(RC360+)
◆ Full screen CCD&Picture in Picture
◆ Dual storage
◆ JPEG format Pictures
◆ Full measurement functions
◆ All digital display


Item

　RC360+
Detector characteristics 　Detector type 　Uncooled FPA microbolometer
　Array size/format 　384×288
　Image manage 　Field of view/min focus distance 　16°×12°/0.5m
　Spatial resolutions(IFOV) 　0.88mrad
　Thermal sensitivity 　≤0.06℃@30℃
　Frame rate 　50/60HZ
　Focus 　Auto/Electronic focus
　Electronic zoom 　1～8X continuous
　Spectral range 　8～14μm
　Built-in visual camera 　300,000 pixels，Pic. in Pic. or full
　Image display 　Viewfinder 　Built-in high-resolution color LCD
　LCD 　High-resolution color LCD, 640×480
　Measurement 　Temperature ranges 　-20℃～+500℃,optional up to +1200℃ or +2000℃
　Accuracy 　±2℃ or ±2% of reading, whichever is greater
　Measurement correction 　Automatic/Manual
　Measurement mode 　Up to 10 movable spots. Up to 5 movable areas(maximum, minimum and average temperatures).Line profile. Isothem. Temperature difference.Alarm(voice,color)
　Color palette 　9 palettes changeable(Iron,rainbow,Grey and Grey inverted,etc.)
　Image adjustment 　Auto/Manual gain and brightness
　Setup functions 　Date/time, temperature unit, language
　Emissivity correction 　Variable from 0.01 to 1.0 or select from listings in pre-defined material list
　Ambient temperature correction 　Automatic correction according to user input
　Atmospheric transmission correction 　Automatic correction according to user input object distance, relative humidity, ambient temperature
　Image storage 　Storage Card

　Built-in flash memory, CF card(2G),Up to 5000 images　
　Storage mode 　Autmatic/Manual single image saving
　File format-thermal 　JPEG,14 bit thermal image with measurement data
　Voice annotation 　Input via built-in microphone Up to 40 seconds of digital voice per image stored with image　　
　Image improvenment 　Averaging(S2、S4、S8、S16),Spatial filter
　Laser pointer 　Laser pointer 　Class 2,1mw/635nm(red)
　Power supply 　Battery type 　Li-Ion,rechargeable　
　Battery operating time 　2 hours continuous operation
　Charging system 　Intelligent charger or power supply adaptor(optional) online charge
　Power saving 　YES
　Extermal power 　10～15V DC　
　Environment 　Operating temperature 　-15℃～+50℃
　Humidity 　≤90% non-condensing
　Encapsulation 　IP54
　Physical
　 characteristics		 　Weight 　1.69Kg
　Dimensious 　305mm×130mm×135mm
　Interface 　Extermal DC input 　Yes
　Audio output 　Yes
　Video output 　PAL/NTSC/VGA
　USB 　Image(thermal and visual),measurement data and voice transfer to PC

caméra infrarouge

RC260+  --384x288,Portable

◆ High Thermal sensitivity (0.06℃@30℃)
◆ 384x288 uncooled FPA detector
◆ Clear images
◆ Portable and light
◆ Voice and color alarm
◆ LCD 90 degree rotatable
◆ SD card saving
◆ JPEG format Pictures
◆ Full measurement functions
◆ All digital display

Item
RC260+
Detector characteristics 　Detector type 　uncooled FPA microbolometer
　Array size/format 　384×288
Image manage 　Field of view/min focus 　distance 　16°×12°/0.5m
　Spatial resolutions(IFOV) 　0.88mrad
 　Thermal sensitivity 　≤0.06℃@30℃
　Frame rate 　50/60HZ
　Focus 　Manual
　Electronic zoom 　2X
　Spectral range 　8～14μm
Image display 　LCD 　Built-in high-resolution color 2.8" LCD
Measurement 　Temperature ranges 　-20℃～+500℃
　Accuracy 　±2℃ or ±2% of reading, whichever is greater
　Measurement correction 　Automatic/manual
　Measurement mode 　Up to 4 movable spots. Up to 3 movable areas(maximum, minimum and average temperatures).Line profile. Isothem. Temperature difference.Alarm(voice,color)
　Color palette 　11
　Image adjustment 　Auto/manual gain and brightness
　Setup functions 　Date/time, temperature unit, language
　Emissivity correction 　Variable from 0.01 to 1.0
　Ambient temperature correction 　Automatic correction according to user input
　Atmospheric transmission correction 　Automatic correction according to user input object distance, relative humidity, ambient temperature
Image storage 　Storage Card

 　Built-in flash memory, SD card(1G), Up to 4000 images　
　Storage mode 　Autmatic/manual single image saving
　File format-thermal 　JPEG,14 bit thermal image with measurement data
　Voice annotation 　Input via built-in microphone Up to 40 seconds of digital voice per image stored with image　　
Laser pointer 　Laser pointer 　Class 2,1mw/635nm(red)
Power supply 　Battery type 　Li-Ion,rechargeable　
　Battery operating time 　3 hours continuous operation
　Charging system 　Intelligent charger or power supply adaptor(optional)online charge
　Power saving 　YES
　Extermal power 　10～15V DC　
Environment 　Operating temperature 　-15℃～+50℃
　Humidity 　≤90% non-condensing
　Encapsulation 　IP54
Physical 　characteristics 　Weight 　0.91Kg
　Dimensious 　303mm×123mm×85mm
Interface 　Extermal DC input 　Yes
　Audio output 　Yes
　Video output 　PAL/NTSC
　SD card 　Yes
　USB 　Image, measurement data and voice transfer to PC

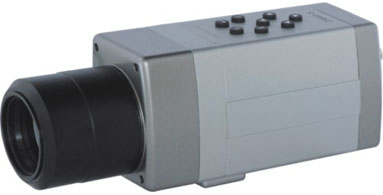

caméra infrarouge

◆ 160x120/384x288 uncooled FPA detector
◆ High Thermal sensitivity (0.06℃@30℃)
◆ Real-time display
◆ MPEG4 network digital video transporting and saving
◆ Auto focus（RC800+）
◆ Online condition monitoring
◆ Free SDK for development

Item
RC800　　　
RC800+
　Detector characteristics 　Detector type 　Uncooled FPA microbolometer
　Array size/format 　160×120 　384×288
　manage		 　Field of view/min 　
　focus distance		 　18°×13°/0.3m 　16°×12°/0.5m
　Spatial resolutions
　(IFOV)		 　1.9mrad 　0.88mrad
　Thermal sensitivity 　≤0.1@30℃ 　≤0.06℃@30℃
　Frame rate 　50/60HZ
　Focus 　Manual 　Autom/manual
　Spectral range 　8～14μm
Measurement 　Temperature ranges 　-20℃～+350℃,
　extend to +600℃		 　-20℃～+500℃
　Accuracy 　±2℃ or ±2% of reading, whichever is greater
　Measurement
　correction		 　Automatic/manual
　Measurement mode 　Up to 4 movable spots. Up to 3 movable areas(maximum, minimum and average temperatures).Line profile. Isothem. Temperature difference.Alarm(voice,color)
　Color palette 　11 paletts changeable(Iron,Rainbow,Grey inverted,etc)
　Image adjustment 　Auto/manual gain and brightness
　Setup functions 　Date/time, temperature unit, language IP address　
　Emissivity correction 　Variable from 0.01 to 1.0 or select from listings in pre-defined material list
　Ambient temperature
　correction		 　Automatic correction according to user input
　Atmospheric transmission correction 　Automatic correction according to user input object distance, relative humidity, ambient temperature
　storage		 　Raw image capture 　Single frame raw image manual captured via client control software,the captured images are analyzable
　Image storage 　MPEG-4 images storage, single image capture,BMP　　
　Power
　supply		 　Extermal power 　10～15V DC　
　Power consumption 　≤6W(Normal operating at 25℃ ambient temperature condition)
Environment 　Operating
　temperature		 　-15℃～+50℃
　Humidity 　≤90% non-condensing
　Physical 　characteristics 　Weight 　≤1.09Kg(Exclude lens)
　Dimensious 　224mm×92mm×82mm 　260mm×92mm×82mm
　Interface 　Extermal DC input 　Yes
　Video output 　PAL/NTSC
　Digital video output 　RJ-45 Ethernet output,MPEG4 digital video/raw
　temperature measured data
　Remote control
　Interface		 　RS485
　Ethernet interface 　RJ-45 Ethernet output for thermal image, data
　transfer, and camera control　
　Alarm interface 　Open/Close:Alarm signal output
RC10 series is a special low cost real-time IR camera in 160X120 resolution. It combines the traits of economical practical and portable. The camera symbolizes easy-to-use, standard and professional, developing for those applications that need instant infrared troubleshooting in power plant, petrochemicals, scientific research, fire fighting, and building inspection, metallurgy, etc.
◆ 160x120 uncooled FPA detector
◆ Cost effective
◆ 50Hz real-time measurement
◆ JPEG format Pictures
◆ Portable,Small size
◆ Optional lenses
◆ Free analysis software
◆ Color/Voice alarming
◆ 40 seconds audio recording

Item
RC10
RC10+
　Detector characteristics 　Detector type 　Uncooled FPA microbolometer
　Array size/format 　160×120
　Image manage 　Field of view/min focus distance 　18°×13°/0.3m
　Spatial resolutions(IFOV)　 　1.9mrad
　Thermal sensitivity 　≤0.1℃@30℃
　Frame rate 　60HZ 　50/60HZ
　Focus 　Manual
　Electronic zoom 　N/A 　2X
　Spectral range 　8～14μm
　Image display 　LCD 　Built-in high-resolution color 2.5〞LCD
　Measurement 　Temperature ranges 　-20℃～+350℃ 　-20℃～+350℃,optional up to +600℃
　Accuracy 　±2℃ or ±2% of reading, whichever is greater
Measurement correction 　Automatic/manual
　Measurement mode
　Movable spots. Movable areas(maximum, minimum and average temperatures).
Isothem.Alarm(voice,color)　
Up to 4 movable spots. Up to 3 movable areas(maximum, minimum and average temperatures).Line profile. Isothem. Temperature difference.Alarm(voice,color)
　Color palette
　3 palettes changeable
　11 palettes changeable
　Image adjustment 　Auto/manual gain and brightness
　Setup functions 　Date/time, temperature unit, language
Emissivity correction 　Variable from 0.01 to 1.0 or select from listings in pre-defined material list
　Ambient temperature correction 　Automatic correction according to user input
　Atmospheric transmission correction
　N/A
 　Automatic correction according to user input
object distance, relative humidity, ambient 　
temperature
　Image storage 　Storage Card 　Built-in flash memory, Up to 1000 images　 　Built-in flash memory, up to 2000 images
　Storage mode 　Manual single image saving　 　Autmatic/manual single image saving
　File format-thermal 　JPEG,14 bit thermal image with measurement data
　Voice annotation
　N/A
 　Input via built-in microphone Up to 40 seconds of digital voice per image stored with image
　Laser pointer 　Laser pointer 　Class 2,1mw/635nm(red)
　Power supply 　Battery type 　Li-Ion,rechargeable　
　Battery operating time 　3 hours continuous operation
　Charging system 　Intelligent charger 　Intelligent charger or power supply adaptor (optional)online charde
　Power saving 　YES
　Extermal power 　N/A 　10～15V DC　
　Environment operating temperature 　-15℃～+50℃
　Humidity 　≤90% non-condensing
　Encapsulation 　IP54
　Physical 　characteristics 　Weight 　0.6Kg
　Dimensious 　250mm×100mm×72mm
　Interface 　Extermal DC input 　N/A 　Yes
　Audio output 　N/A 　Yes
　Video output 　N/A 　PAL/NTSC
　USB 　Image,measurement data transfer to PC 　Image,measurement data and voice
transfer to PC
Caméra à imagerie thermique RC110
Item
RC110
Detector characteristics 　Detector type 　uncooled FPA microbolometer
　Array size/format 　160×120
Image manage 　Field of view/min focus 　distance 　25°×19°/0.5m
　Spatial resolutions(IFOV) 　2.73mrad
 　Thermal sensitivity 　≤0.08℃@30℃
　Frame rate 　50HZ
　Focus 　Manual
　Electronic zoom 　2X 4X
　Spectral range 　8～14μm
Built-in visual camera 3000,000 pixels，Pic. in Pic. or full
Image display 　LCD 　Built-in high-resolution color 3.6" LCD
Measurement 　Temperature ranges 　-20℃～+350℃,optional up to +1000℃
　Accuracy 　±2℃ or ±2% of reading, whichever is greater
　Measurement correction 　Automatic/manual
　Measurement mode 　Up to 5 movable spots. Up to 5 movable areas(maximum, minimum and average temperatures).Line profile. Isothem. Temperature difference.Alarm(voice,color)
　Color palette 　11
　Image adjustment 　Auto/manual gain and brightness
　Setup functions 　Date/time, temperature unit, language
　Emissivity correction 　Variable from 0.01 to 1.0
　Ambient temperature correction 　Automatic correction according to user input
　Atmospheric transmission correction 　Automatic correction according to user input object distance, relative humidity, ambient temperature
Image storage 　Storage Card

 　Built-in flash memory, SD card(8G), Up to 32GB
　Storage mode 　Autmatic/manual single image saving
　File format-thermal 　JPEG,14 bit thermal image with measurement data
　Voice annotation 　Input via built-in microphone Up to 60 seconds of digital voice per image stored with image　　
Laser pointer 　Laser pointer 　Class 2,1mw/635nm(red)
Power supply 　Battery type 　Li-Ion,rechargeable　
　Battery operating time 　3 hours continuous operation
　Charging system 　Intelligent charger or power supply adaptor(optional)online charge
　Power saving 　YES
　Extermal power 　12V DC　
Environment 　Operating temperature 　-15℃～+50℃
　Humidity 　≤90% non-condensing
　Encapsulation 　IP54
Physical 　characteristics 　Weight 　1Kg
　Dimensious 　105mm×245mm×230mm
Interface 　Extermal DC input 　Yes
　Audio output 　Yes
　Video output 　PAL/NTSC
　SD card 　Yes
　USB 　Image, measurement data and voice transfer to PC
Caméra à imagerie thermique RC120
Item
RC120
Detector characteristics 　Detector type 　uncooled FPA microbolometer
　Array size/format 　384×288
Image manage 　Field of view/min focus 　distance 　25°×19°/0.5m
　Spatial resolutions(IFOV) 　1.37mrad
 　Thermal sensitivity 　≤0.06℃@30℃
　Frame rate 　50HZ
　Focus 　Manual
　Electronic zoom 　2X 4X
　Spectral range 　8～14μm
Built-in visual camera 3000,000 pixels，Pic. in Pic. or full
Image display 　LCD 　Built-in high-resolution color 3.6" LCD
Measurement 　Temperature ranges 　-20℃～+600℃,optional up to +1200℃
　Accuracy 　±2℃ or ±2% of reading, whichever is greater
　Measurement correction 　Automatic/manual
　Measurement mode 　Up to 5 movable spots. Up to 5 movable areas(maximum, minimum and average temperatures).Line profile. Isothem. Temperature difference.Alarm(voice,color)
　Color palette 　11
　Image adjustment 　Auto/manual gain and brightness
　Setup functions 　Date/time, temperature unit, language
　Emissivity correction 　Variable from 0.01 to 1.0
　Ambient temperature correction 　Automatic correction according to user input
　Atmospheric transmission correction 　Automatic correction according to user input object distance, relative humidity, ambient temperature
Image storage 　Storage Card

 　Built-in flash memory, SD card(8G), Up to 32GB
　Storage mode 　Autmatic/manual single image saving
　File format-thermal 　JPEG,14 bit thermal image with measurement data
　Voice annotation 　Input via built-in microphone Up to 60 seconds of digital voice per image stored with image　　
Laser pointer 　Laser pointer 　Class 2,1mw/635nm(red)
Power supply 　Battery type 　Li-Ion,rechargeable　
　Battery operating time 　3 hours continuous operation
　Charging system 　Intelligent charger or power supply adaptor(optional)online charge
　Power saving 　YES
　Extermal power 　12V DC　
Environment 　Operating temperature 　-15℃～+50℃
　Humidity 　≤90% non-condensing
　Encapsulation 　IP54
Physical 　characteristics 　Weight 　1Kg
　Dimensious 　105mm×245mm×230mm
Interface 　Extermal DC input 　Yes
　Audio output 　Yes
　Video output 　PAL/NTSC
　SD card 　Yes
　USB 　Image, measurement data and voice transfer to PC



Si vous êtes intéressé par nos produits s'il vous plaît envoyer vos demandes à nous par E-MAIL

Nous vous répondrons dès que possible.

Rinch Industrial Co.,Limited

Adresse: Room302, Building 17, No.35 Dedu road, Baoshan, Shanghai China  Zip code: 200941

Téléphone: 86-21-36300944        Télécopieur:86-21-36300944        E-Mail:  goodluckvon@hotmail.com
