Lab Conductivity Meter
MP513 Lab Conductivity Meter
● The fourth generation electrochemical meter, one of MP500 Series. It is
suitable for normal solution conductivity measurement.
● Equips Conductivity/ATC plastic electrode. Its measurement result is fast and
precise.
● Advanced and original conductivity measurement technology, wide measurement
range, high accuracy. Conductivity measurement mode can be switched to TDS,
salinity and resistivity.
● Equips flexible electrode holder and brief operation instruction, more
convenient for using
●Instrument Rating: 1.0More
|
Conductivity
|
Measuring range
Resolution
Accuracy
Temp. compensation range
Electrode constant
Reference temperature
|
Conductivity：（0.00~20.00）μS/cm （20.0~200.0）μS/cm
（200~2000）μS/cm （2.00~20.00）mS/cm
（20.0~200.0）mS/cm
Resistivity：（0 ~ 100）MΩ·cm
TDS: （0 ~ 100）g/L
Salinity： （0 ~ 100）ppt
0.01/0.1/1μS/cm 0.01/0.1/1 mS/cm
Meter:±0.5% FS,connect meter with electrode:±0.80% FS
（0 ~ 50）℃（automatic ）
0.1 / 0.5 / 1 / 5 / 10 / 50 / 100 cm-1
25℃、20℃ and 18℃
|
|
Temperature
|
Measuring range
Resolution
Accuracy
|
-10℃~ 110℃
0.1℃
5~ 60℃range：±0.4℃ other range：±0.8℃
|
|
Other Technical Parameters:
|
Data storage
Storage content
Power
Communication connector
Size and weight
Quality and safety certification
|
300 groups
Measuring value series number, measuring value, temperature, ATC or
MTC state, measuring date and time
DC9V/300mA
RS232
160 × 190 × 70mm/880g
ISO9001:2008, CE and CMC
|
|
Working Condition
|
Environment temperature
Environmental humidity
IP rating
|
5 ~ 35 ℃（0.01grade） 15 ~ 30 ℃（0.001grade）
≤75%
IP54 Dustproof and waterproof
|

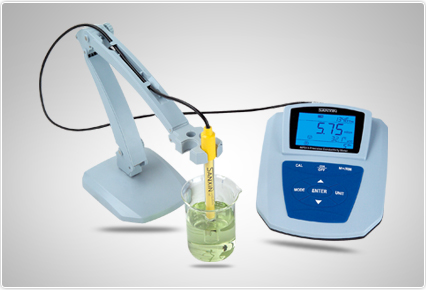

MP515 Precision Conductivity Meter
● The fourth generation electrochemical meter, one of MP500 Series. High
precision conductivity meter, which is suitable for precision conductivity
measurement of research and quality control
● Equips Conductivity/ATC glass electrode. Its measurement result is fast and
precise.
● Advanced and original conductivity measurement technology, wide measurement
range, high accuracy. Conductivity measurement mode can be switched to TDS,
salinity and resistivity.
● Equips flexible electrode holder and brief operation instruction, more
convenient for using
●Instrument Rating: 0.5More
|
Conductivity
|
Measuring range
Resolution
Accuracy
Temp. compensation range
Electrode constant
Reference temperature
|
Conductivity：（0.00~20.00）μS/cm （20.0~200.0）μS/cm
（200~2000）μS/cm （2.00~20.00）mS/cm
（20.0~200.0）mS/cm （200~2000）mS/cm（K=10）
Resistivity：（0 ~ 100）MΩ·cm
TDS: （0 ~ 100）g/L
Salinity： （0 ~ 100）ppt
0.01/0.1/1μS/cm 0.01/0.1/1 mS/cm
Meter:±0.5% FS,connect meter with electrode:±0.80% FS
（0 ~ 50）℃（automatic ）
0.1 / 0.5 / 1 / 5 / 10 / 50 / 100 cm-1
25℃、20℃ and 18℃
|
|
Temperature
|
Measuring range
Resolution
Accuracy
|
-10℃~ 110℃
0.1℃
5~ 60℃range：±0.4℃ other range：±0.8℃
|
|
Other Technical Parameters:
|
Data storage
Storage content
Power
Communication connector
Size and weight
Quality and safety certification
|
300 groups
Measuring value series number, measuring value, temperature, ATC or
MTC state, measuring date and time
DC9V/300mA
RS232
160 × 190 × 70mm/880g
ISO9001:2008, CE and CMC
|
|
Working Condition
|
Environment temperature
Environmental humidity
IP rating
|
5 ~ 35 ℃（0.01grade） 15 ~ 30 ℃（0.001grade）
≤75%
IP54 Dustproof and waterproof
|
DDS-11C Lab Conductivity Meter
● Basic model bench type conductivity meter, cheap, which is used for normal
solution conductivity measurement,
● Equips 2301-F conductivity electrode and 600 simple electrode holder.
● Automatic calibration and automatic temperature compensation.
●Instrument Rating: 1.0More
|
Category |
Product Name |
Basic
features and specifications |
|
Conductivity |
Measuring Range |
Conductivity:（0 ~199.9）μS/cm
（200~1999）μS/cm （2.00~19.99）mS/cm
（20.0~199.9）mS/cm |
| Resolution |
0.1/1μS/cm 0.01/0.1 mS/cm |
| Accuracy |
Meter：±1.0% FS, with electrode: ±1.5% FS |
| Temp. Compensation range |
（0 ~ 50）℃ (automatic or
manual) |
| Electrode Constant |
0.1 / 1 / 10 cm-1 |
| Other
Technical Specifications |
Data Storage |
50groups |
| Storage Content |
Measuring value serial
number, measuring value, and temperature |
| Power |
DC9V |
| Size and Weight |
(160×190×70)mm/750g(Meter) |
| Quality and Safety Certification |
ISO9001:2008, CE and CMC |
| Working
Condition |
Environment Temperature |
5 ~ 35 ℃（0.01） |
| Environmental Humidity |
≤85% |
MP521 Lab pH/Conductivity Meter
● The forth generation electrochemical meter, one of MP500 Series. It is the
most widely used pH + Conductivity Double-Parameter measurement meter.
● Equips pH/ATC electrode and conductivity electrode. Its measurement result is
fast and precise.
● Advanced and original conductivity measurement technology, wide measurement
range, high accuracy. Conductivity measurement mode can be switched to TDS,
salinity and resistivity.
● Equips flexible electrode holder and brief operation instruction, more
convenient for using
●Instrument Rating:
pH：0.01；
Conductivity:1.0More
|
pH
|
Measuring range
Resolution
Accuracy
Input current
Input impendance
Stability
Temp. compensation range
|
（-1.99 ~ 19.99）pH
0.1/0.01/0.001 pH
Meter:±0.01 pH, connect meter with electrode:±0.01pH
≤1×10-12 A
≥3×1012 Ω
±0.01 pH/3h
(0 to 100) ℃（automatic or manual）
|
|
mV
|
Measuring range(mV/ORP/EH)
Resolution
Accuracy
|
-1999.9mV ~ 0 ~ 1999.9mV
0.1mV
±0.03% FS
|
|
Conductivity
|
Measuring range
Resolution
Accuracy
Temp. compensation range
Electrode constant
Reference temperature
|
Conductivity：（0.00~20.00）μS/cm （20.0~200.0）μS/cm
（200~2000）μS/cm （2.00~20.00）mS/cm
（20.0~200.0）mS/cm
Resistivity：（0 ~ 100）MΩ·cm
TDS: （0 ~ 100）g/L
Salinity： （0 ~ 100）ppt
0.01/0.1/1μS/cm 0.01/0.1/1 mS/cm
Meter:±1.0% FS,connect meter with electrode:±1.5% FS
（0 ~ 50）℃（automatic ）
0.1 / 0.5 / 1 / 5 / 10 / 50 / 100 cm-1
25℃、20℃ and 18℃
|
|
Temperature
|
Measuring range
Resolution
Accuracy
|
-10℃~ 110℃
0.1℃
5~ 60℃range：±0.4℃ other range：±0.8℃
|
|
Other Technical Parameters:
|
Data storage
Storage content
Power
Communication connector
Size and weight
Quality and safety certification
|
300 groups
Measuring value series number, measuring value, temperature, ATC or
MTC state, measuring date and time
DC9V/300mA
RS232
160 × 190 × 70mm/880g
ISO9001:2008, CE and CMC
|
|
Working Condition
|
Environment temperature
Environmental humidity
IP rating
|
5 ~ 35 ℃（0.01grade） 15 ~ 30 ℃（0.001grade）
≤75%
IP54 Dustproof and waterproof
|

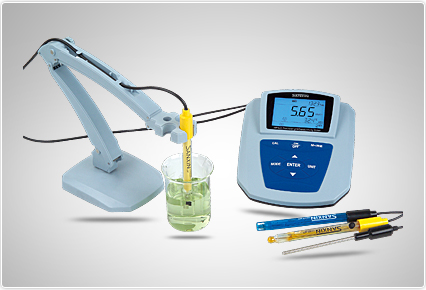

MP522 Precision pH/Conductivity Meter
●The fourth generation electrochemical meter, one of MP500 Series. It is the
high precision pH + Conductivity Double-Parameter measurement meter which is
suitable for precision measurement research and quality control
●Equips two pH electrodes: one is plastic 3-in-1 pH electrode and the other one
is 2503 glass pH electrode, which is suitable for high precision measurement.
● Equips glass conductivity electrode with ATC and its result is fast and
accurate.
● Adopt advanced and original conductivity measurement technology has large
measurement range and high accuracy.
● Equips flexible electrode holder and brief operation instruction, more
convenient for using
●Instrument Rating: pH：0.001；Conductivity:0.5More
|
pH
|
Measuring range
Resolution
Accuracy
Input current
Input impendance
Stability
Temp. compensation range
|
（-1.999 ~ 19.999）pH
0.1/0.01/0.001 pH
Meter:±0.002 pH, connect meter with
electrode:±0.01pH
≤1×10-12 A
≥3×1012 Ω
±0.002 pH/3h
(0 to 100) ℃（automatic or manual）
|
|
mV
|
Measuring range(mV/ORP/EH)
Resolution
Accuracy
|
-1999.9mV ~ 0 ~ 1999.9mV
0.1mV
±0.03% FS
|
|
Conductivity
|
Measuring range
Resolution
Accuracy
Temp. compensation range
Electrode constant
Reference temperature
|
Conductivity：（0.00~20.00）μS/cm
（20.0~200.0）μS/cm
（200~2000）μS/cm （2.00~20.00）mS/cm
（20.0~200.0）mS/cm （200~2000）mS/cm（K=10）
Resistivity：（0 ~ 100）MΩ·cm
TDS: （0 ~ 100）g/L
Salinity： （0 ~ 100）ppt
0.01/0.1/1μS/cm 0.01/0.1/1 mS/cm
Meter:±0.5% FS,connect meter with
electrode:±0.80% FS
（0 ~ 50）℃（automatic ）
0.1 / 0.5 / 1 / 5 / 10 / 50 / 100 cm-1
25℃、20℃ and 18℃
|
|
Temperature
|
Measuring range
Resolution
Accuracy
|
-10℃~ 110℃
0.1℃
5~ 60℃range：±0.4℃ other range：±0.8℃
|
|
Other Technical Parameters:
|
Data storage
Storage content
Power
Communication connector
Size and weight
Quality and safety certification
|
300 groups
Measuring value series number, measuring
value, temperature, ATC or MTC state,
measuring date and time
DC9V/300mA
RS232
160 × 190 × 70mm/880g
ISO9001:2008, CE and CMC
|
|
Working Condition
|
Environment temperature
Environmental humidity
IP rating
|
5 ~ 35 ℃（0.01grade） 15 ~ 30
℃（0.001grade）
≤75%
IP54 Dustproof and waterproof
|
MP526 Conductivity/DO Meter
●The fourth generation electrochemical meter, one of MP500 Series. It is the
high precision Conductivity + DO Double-Parameter measurement meter which is
suitable for precision measurement.
● Equips conductivity electrode, DO electrode ,Intelligent Stirrer and flexible
electrode holder.
● Adopt advanced and original conductivity measurement technology has large
measurement range and high accuracy.
● Conductivity measurement mode can be switched to TDS, salinity and resistivity.
●DO measurement has ATC, automatic salinity compensation and automatic air
pressure compensation.More
|
Conductivity
|
Measuring range
Resolution
Accuracy
Temp. compensation range
Electrode constant
Reference temperature
|
Conductivity：（0.00~20.00）μS/cm
（20.0~200.0）μS/cm
（200~2000）μS/cm （2.00~20.00）mS/cm
（20.0~200.0）mS/cm （200~2000）mS/cm（K=10）
Resistivity：（0 ~ 100）MΩ·cm
TDS: （0 ~ 100）g/L
Salinity： （0 ~ 100）ppt
0.01/0.1/1μS/cm 0.01/0.1/1 mS/cm
Meter:±0.5% FS,connect meter with
electrode:±0.80% FS
（0 ~ 50）℃（automatic ）
0.1 / 0.5 / 1 / 5 / 10 / 50 / 100 cm-1
25℃、20℃ and 18℃
|
|
Dissolved Oxygen
|
Measuring range
Resolution
Accuracy
Response time
Residual current
Temp. compensation range
Salinity compensation range
Air pressure compensation
Automatic calibration
Electrode type
|
（0 ~ 40.00）mg/L(ppm) （0 ~ 200.0）%
0.1/0.01 mg/L(ppm) 1/0.1 %
Meter：±0.10 mg/L，connect meter with
electrode：±0.40 mg/L
≤30 s（25℃, 90% response）
≤0.1 mg/L
（0 ~ 45）℃（automatic）
（0 ~ 45）ppt（automatic）
（80 ~ 105）kPa（automatic）
Air saturated by water; water saturated
by air
Polarogram type
|
|
Temperature
|
Measuring range
Resolution
Accuracy
|
-10℃~ 110℃
0.1℃
5~ 60℃range：±0.4℃ other range：±0.8℃
|
|
Other Technical Parameters:
|
Data storage
Storage content
Power
Communication connector
Size and weight
Quality and safety certification
|
300 groups
Measuring value series number, measuring
value, temperature, ATC or MTC state,
measuring date and time
DC9V/300mA
RS232
160 × 190 × 70mm/880g
ISO9001:2008, CE and CMC
|
|
Working Condition
|
Environment temperature
Environmental humidity
IP rating
|
5 ~ 35 ℃（0.01grade） 15 ~ 30
℃（0.001grade）
≤75%
IP54 Dustproof and waterproof
|

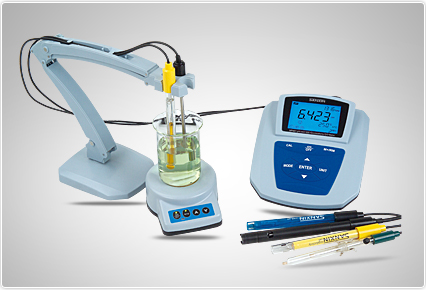

MP551 pH/mV/ISE/Conductivity/DO Meter
●The fourth generation electrochemical meter, one of MP500 Series and is a
high-precision multi-parameter measuring instrument.
●Equips two pH electrodes: one is plastic 3-in-1 pH electrode and the other one
is 2503 glass pH electrode, which is suitable for high precision measurement.
●It has high pure water pH measurement mode and high pure water conductivity
measurement mode.
●Adopt advanced and original conductivity measurement technology, has large
measurement range and high accuracy. Conductivity measurement mode can be
switched to TDS, salinity and resistivity.
●DO measurement has ATC, automatic salinity compensation and automatic air
pressure compensation.
●There are 10 kinds of common ions can be selected in the ion concentration
measuring mode, user also can self-define other ions.
● Can switch 4 kinds of concentration unit : pX, mol/L, mg/L and ppm
● Equips Intelligent stirrer, flexible electrode holder and brief operation
instruction, more convenient for using
●Instrument Rating: pH：0.001; Conductivity: 0.5; ISE: 0.01More
|
pH
|
Measuring range
Resolution
Accuracy
Input current
Input impendance
Stability
Temp. compensation range
|
（-1.999 ~ 19.999）pH
0.1/0.01/0.001 pH
Meter:±0.002 pH, connect meter with electrode:±0.01pH
≤1×10-12 A
≥3×1012 Ω
±0.002 pH/3h
(0 to 100) ℃（automatic or manual）
|
|
mV
|
Measuring range(mV/ORP/EH)
Resolution
Accuracy
|
-1999.9mV ~ 0 ~ 1999.9mV
0.1mV
±0.03% FS
|
|
Ion Concentration
|
Measuring range
Display unit
Accuracy
Temp. compensation range
|
0.00 ~ 14.00 pX
pX、mol/L、mg/L、ppm
Meter:±0.5 % reading(monovalent), ±1.0 % reading (bivalent)
0 to 60 ℃（automatic or manual）
|
|
Conductivity
|
Measuring range
Resolution
Accuracy
Temp. compensation range
Electrode constant
Reference temperature
|
Conductivity：（0.00~20.00）μS/cm （20.0~200.0）μS/cm
（200~2000）μS/cm （2.00~20.00）mS/cm
（20.0~200.0）mS/cm （200~2000）mS/cm（K=10）
Resistivity：（0 ~ 100）MΩ·cm
TDS: （0 ~ 100）g/L
Salinity： （0 ~ 100）ppt
0.01/0.1/1μS/cm 0.01/0.1/1 mS/cm
Meter:±0.5% FS,connect meter with electrode:±0.80% FS
（0 ~ 50）℃（automatic ）
0.1 / 0.5 / 1 / 5 / 10 / 50 / 100 cm-1
25℃、20℃ and 18℃
|
|
Dissolved Oxygen
|
Measuring range
Resolution
Accuracy
Response time
Residual current
Temp. compensation range
Salinity compensation range
Air pressure compensation
Automatic calibration
Electrode type
|
（0 ~ 40.00）mg/L(ppm) （0 ~ 200.0）%
0.1/0.01 mg/L(ppm) 1/0.1 %
Meter：±0.10 mg/L，connect meter with electrode：±0.40 mg/L
≤30 s（25℃, 90% response）
≤0.1 mg/L
（0 ~ 45）℃（automatic）
（0 ~ 45）ppt（automatic）
（80 ~ 105）kPa（automatic）
Air saturated by water; water saturated by air
Polarogram type
|
|
Temperature
|
Measuring range
Resolution
Accuracy
|
-10℃~ 110℃
0.1℃
5~ 60℃range：±0.4℃ other range：±0.8℃
|
|
Other Technical Parameters:
|
Data storage
Storage content
Power
Communication connector
Size and weight
Quality and safety certification
|
300 groups
Measuring value series number, measuring value, temperature, ATC or
MTC state, measuring date and time
DC9V/300mA
RS232
160 × 190 × 70mm/880g
ISO9001:2008, CE and CMC
|
|
Working Condition
|
Environment temperature
Environmental humidity
IP rating
|
5 ~ 35 ℃（0.01grade） 15 ~ 30 ℃（0.001grade）
≤75%
IP54 Dustproof and waterproof
|
SX713 Portable Conductivity/ TDS/Sal./Res.Meter
● Portable electrochemical instrument of the 4th generation, the most cost
effective portable conductivity meter among SX700 series.
● Equipped with plastic conductivity electrode with automatic temperature
compensation, fast response and accurate result.
● Advanced conductivity measurement technology, wide measurement scope and high
precision.
● IP57 waterproof rating, equipped with calibration solution and portable case.
● Meter Rating: 0.01.More
| Category |
Product Name |
Basic features and specifications |
| Conductivity |
Measuring range |
Conductivity：（0.00~19.99）μS/cm （20.0~199.9）μS/cm （200~1999）μS/cm
（2.00~19.99）mS/cm （20.0~199.9）mS/cm TDS: （0 ~ 100）g/L Salinity： （0 ~
100）ppt Resistivity：（0 ~ 100）MΩ·cm |
| Resolution |
0.01/0.1/1μS/cm 0.01/0.1 mS/cm |
| Accuracy |
Meter:±1.0% FS, Overall:±1.5% FS |
| Temp. compensation range |
（0 ~ 50）℃(manual) |
| Electrode constant |
0.1 / 1 / 10 cm-1 |
| Benchmark temperature |
25℃、20℃ and 18℃ |
| Other Technical Parameters |
Data storage |
200 groups |
| Storage content |
Series number, measuring value measuring unit and
temperature, |
| Power |
Two AA batteries (1.5V x2) |
| Size and weight |
meter：(65×120×31)mm/180g；Suitcase：
(360×270×76)mm/1.6Kg |
| Quality and safety certification |
ISO9001:2000, CE and CMC |
| Working Condition |
Environment temperature |
5 ~ 35 ℃（0.01grade） |
| Environmental humidity |
≤85% |
| IP rating |
IP57 Dustproof and waterproof |

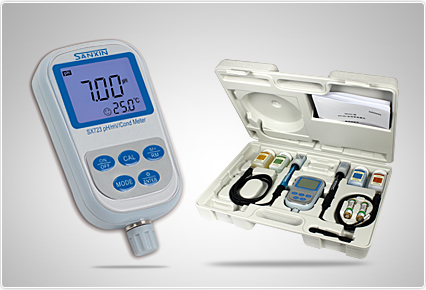

SX723 Portable pH/Conductivity Meter
● Portable electrochemical instrument of the 4th generation, the most cost
effective portable pH+Conductivity double-parameter meter among SX700 series.
● Equipped with pH electrode and conductivity electrode, automatic
identification of electrode by meter.
● Advanced conductivity measurement technology, wide measurement scope and high
precision, ability to switch among conductivity, TDS, salinity and resistivity.
● IP57 waterproof rating, equipped with calibration solution and portable case.
● Meter Rating: 0.01, conductivity: 1.0.More
| Category |
Product Name |
Basic features and specifications |
| PH |
Measuring range |
（-2.00 ~ 19.99）pH |
| Resolution |
0.1/0.01 pH |
| Accuracy |
Meter:±0.01pH; Overall: ±0.02pH |
| Input current |
≤2×10-12 A |
| Input impendance |
≥1×1012 Ω |
| Stability |
±0.01 pH/3h |
| Temp. compensation range |
（0 ~ 100）℃(automatic) |
| ORP |
Measuring range (mV/ORP/EH) |
-1999mV ~ 0 ~ 1999mV |
| Resolution |
1mV |
| Accuracy |
Meter:±0.1% FS, Overall: ±15mV |
| Conductivity |
Measuring range |
Conductivity：（0.00~19.99）μS/cm （20.0~199.9）μS/cm （200~1999）μS/cm
（2.00~19.99）mS/cm （20.0~199.9）mS/cm TDS: （0 ~ 100）g/L Salinity： （0 ~
100）ppt Resistivity：（0 ~ 100）MΩ·cm |
| Resolution |
0.01/0.1/1μS/cm 0.01/0.1 mS/cm |
| Accuracy |
Meter:±1.0% FS, Overall:±1.5% FS |
| Temp. compensation range |
（0 ~ 50）℃(manual) |
| Electrode constant |
0.1 / 1 / 10 cm-1 |
| Benchmark temperature |
25℃、20℃ and 18℃ |
| Other Technical Parameters |
Data storage |
200 groups |
| Storage content |
Series number, measuring value measuring unit and
temperature, |
| Power |
Two AA batteries (1.5V x2) |
| Size and weight |
meter：(65×120×31)mm/180g；Suitcase：
(360×270×76)mm/1.6Kg |
| Quality and safety certification |
ISO9001:2000, CE and CMC |
| Working Condition |
Environment temperature |
5 ~ 35 ℃（0.01grade） |
| Environmental humidity |
≤85% |
| IP rating |
IP57 Dustproof and waterproof |
SX726 Portable Conductivity/Dissolved Oxygen Meter
● Portable electrochemical instrument of the 4th generation, the most cost
effective conductivity + dissolved oxygen meter among SX700 series.
● Equipped with conductivity electrode and dissolved oxygen electrode, automatic
identification of electrode by meter.
● Advanced conductivity measurement technology, wide measurement scope and high
precision, ability to switch among conductivity, TDS, salinity and resistivity.
● Measurement mode of Dissolved oxygen has the function of automatic temperature
compensation, automatic salinity compensation and manual air pressure
compensation.
● Meter meets IP57 waterproof rating, equipped with calibration solution and
portable case.
SX731 Portable pH/ORP/Conductivity Meter
● Portable electrochemical instrument of the 4th generation, the most cost
effective multi-parameter meter among SX700 series.
● Equipped with pH electrode, ORP electrode and conductivity electrode,
automatic identification of electrode by meter.
● Advanced conductivity measurement technology, wide measurement scope and high
precision, ability to switch among conductivity, TDS, salinity and resistivity.
● IP57 waterproof rating, equipped with calibration solution and portable case.
● Meter Rating: 0.01, conductivity: 1.0.More
| Category |
Product Name |
Basic features and specifications |
| Conductivity |
Measuring range |
Conductivity：（0.00~19.99）μS/cm （20.0~199.9）μS/cm （200~1999）μS/cm
（2.00~19.99）mS/cm （20.0~199.9）mS/cm TDS: （0 ~ 100）g/L Salinity： （0 ~
100）ppt Resistivity：（0 ~ 100）MΩ·cm |
| Resolution |
0.01/0.1/1μS/cm 0.01/0.1 mS/cm |
| Accuracy |
Meter:±1.0% FS, Overall:±1.5% FS |
| Temp. compensation range |
（0 ~ 50）℃(manual) |
| Electrode constant |
0.1 / 1 / 10 cm-1 |
| Benchmark temperature |
25℃、20℃ and 18℃ |
| Dissolved Oxygen |
Measuring range |
（0 ~ 40.00）mg/L(ppm) （0 ~ 200.0）% |
| Resolution |
0.1/0.01 mg/L(ppm) 1/0.1 % |
| Accuracy |
Meter:±0.10 mg/L, Overall:±0.40 mg/L |
| Response time |
≤30 s（25℃, 90%response） |
| Residual current |
≤0.1 mg/L |
| Temp. compensation range |
（0 ~ 45）℃(automatic) |
| Salinity compensation range |
（0 ~ 45）ppt(automatic) |
| Atmospheric pressure compensation range |
（66 ~ 200）kPa (manual) |
| Automatic calibration |
Air saturated by water; water saturated by air |
| Electrode type |
Polarogram type |
| Other Technical Parameters |
Data storage |
200 groups |
| Storage content |
Series number, measuring value measuring unit and
temperature, |
| Power |
Two AA batteries (1.5V x2) |
| Size and weight |
meter：(65×120×31)mm/180g；Suitcase：
(360×270×76)mm/1.6Kg |
| Quality and safety certification |
ISO9001:2000, CE and CMC |
| Working Condition |
Environment temperature |
5 ~ 35 ℃（0.01grade） |
| Environmental humidity |
≤85% |
| IP rating |
IP57 Dustproof and waterproof |
SX736 SX736Portable Ph/Conductivity/DO Meter
● Portable electrochemical instrument of the 4th generation, the most cost
effective multi-parameter meter among SX700 series.
● Equipped with pH electrode, conductivity electrode and dissolved oxygen
electrode, automatic identification of electrode by meter.
● Advanced conductivity measurement technology, wide measurement scope and high
precision, ability to switch among conductivity, TDS, salinity and resistivity.
● Measurement mode of Dissolved oxygen has the function of automatic temperature
compensation, automatic salinity compensation and manual air pressure
compensation.
● Meter meets IP57 waterproof rating, equipped with calibration solution and
portable case.
● Meter Rating: 0.01, conductivity: 1.0.More
|
Category |
Product Name |
Basic
features and specifications |
| PH |
Measuring range |
（-2.00 ~ 19.99）pH |
| Resolution |
0.1/0.01 pH |
| Accuracy |
Meter:±0.01pH; Overall: ±0.02pH |
| Input current |
≤2×10-12 A |
| Input
impendance |
≥1×1012 Ω |
| Stability |
±0.01 pH/3h |
| Temp.
compensation range |
（0 ~ 100）℃(automatic) |
| ORP |
Measuring range
(mV/ORP/EH) |
-1999mV ~ 0 ~ 1999mV |
| Resolution |
1mV |
| Accuracy |
Meter:±0.1% FS, Overall:
±15mV |
|
Conductivity |
Measuring range |
Conductivity：（0.00~19.99）μS/cm
（20.0~199.9）μS/cm （200~1999）μS/cm
（2.00~19.99）mS/cm （20.0~199.9）mS/cm TDS: （0
~ 100）g/L Salinity： （0 ~ 100）ppt Resistivity：（0
~ 100）MΩ·cm |
| Resolution |
0.01/0.1/1μS/cm 0.01/0.1
mS/cm |
| Accuracy |
Meter:±1.0% FS, Overall:±1.5% FS |
| Temp.
compensation range |
（0 ~ 50）℃(manual) |
| Electrode
constant |
0.1 / 1 / 10 cm-1 |
| Benchmark
temperature |
25℃、20℃ and 18℃ |
|
Dissolved Oxygen |
Measuring range |
（0 ~ 40.00）mg/L(ppm) （0 ~ 200.0）% |
| Resolution |
0.1/0.01 mg/L(ppm) 1/0.1
% |
| Accuracy |
Meter:±0.10 mg/L, Overall:±0.40 mg/L |
| Response time
|
≤30 s（25℃, 90%response） |
| Residual
current |
≤0.1 mg/L |
| Temp.
compensation range |
（0 ~ 45）℃(automatic) |
| Salinity
compensation range |
（0 ~ 45）ppt(automatic) |
| Atmospheric
pressure compensation range |
（66 ~ 200）kPa (manual) |
| Automatic
calibration |
Air saturated by water; water saturated
by air |
| Electrode type |
Polarogram type |
|
Other Technical Parameters |
Data storage |
200 groups |
| Storage content |
Series number, measuring
value measuring unit and temperature, |
| Power |
Two AA batteries (1.5V x2) |
| Size and weight |
meter：(65×120×31)mm/180g；Suitcase：
(360×270×76)mm/1.6Kg |
| Quality and
safety certification |
ISO9001:2000, CE and CMC |
|
Working Condition |
Environment
temperature |
5 ~ 35 ℃（0.01grade） |
| Environmental
humidity |
≤85% |
| IP rating |
IP57 Dustproof and
waterproof |
SX751 Portable pH/ORP/Conductivity/DO Meter
● Portable electrochemical instrument of the 4th generation, the most cost
effective multi-parameter meter among SX700 series.
● Equipped with pH electrode, ORP electrode and conductivity electrode and
dissolved oxygen electrode, automatic identification of electrode by meter.
● Advanced conductivity measurement technology, wide measurement scope and high
precision, ability to switch among conductivity, TDS, salinity and resistivity.
● Dissolved oxygen measurement mode has the functions of automatic temperature
compensation, automatic salinity compensation and manual air pressure
compensation.
● IP57 waterproof rating, equipped with calibration solution and portable case.
● Meter Rating: 0.01, conductivity: 1.0.More
| Category |
Product Name |
Basic features and specifications |
| PH |
Measuring range |
（-2.00 ~ 19.99）pH |
| Resolution |
0.1/0.01 pH |
| Accuracy |
Meter:±0.01pH; Overall: ±0.02pH |
| Input current |
≤2×10-12 A |
| Input impendance |
≥1×1012 Ω |
| Stability |
±0.01 pH/3h |
| Temp. compensation range |
（0 ~ 100）℃(automatic) |
| ORP |
Measuring range (mV/ORP/EH) |
-1999mV ~ 0 ~ 1999mV |
| Resolution |
1mV |
| Accuracy |
Meter:±0.1% FS, Overall: ±15mV |
| Conductivity |
Measuring range |
Conductivity：（0.00~19.99）μS/cm （20.0~199.9）μS/cm （200~1999）μS/cm
（2.00~19.99）mS/cm （20.0~199.9）mS/cm TDS: （0 ~ 100）g/L Salinity： （0 ~
100）ppt Resistivity：（0 ~ 100）MΩ·cm |
| Resolution |
0.01/0.1/1μS/cm 0.01/0.1 mS/cm |
| Accuracy |
Meter:±1.0% FS, Overall:±1.5% FS |
| Temp. compensation range |
（0 ~ 50）℃(manual) |
| Electrode constant |
0.1 / 1 / 10 cm-1 |
| Benchmark temperature |
25℃、20℃ and 18℃ |
| Dissolved Oxygen |
Measuring range |
（0 ~ 40.00）mg/L(ppm) （0 ~ 200.0）% |
| Resolution |
0.1/0.01 mg/L(ppm) 1/0.1 % |
| Accuracy |
Meter:±0.10 mg/L, Overall:±0.40 mg/L |
| Response time |
≤30 s（25℃, 90%response） |
| Residual current |
≤0.1 mg/L |
| Temp. compensation range |
（0 ~ 45）℃(automatic) |
| Salinity compensation range |
（0 ~ 45）ppt(automatic) |
| Atmospheric pressure compensation range |
（66 ~ 200）kPa (manual) |
| Automatic calibration |
Air saturated by water; water saturated by air |
| Electrode type |
Polarogram type |
| Other Technical Parameters |
Data storage |
200 groups |
| Storage content |
Series number, measuring value measuring unit and
temperature, |
| Power |
Two AA batteries (1.5V x2) |
| Size and weight |
meter：(65×120×31)mm/180g；Suitcase：
(360×270×76)mm/1.6Kg |
| Quality and safety certification |
ISO9001:2000, CE and CMC |
| Working Condition |
Environment temperature |
5 ~ 35 ℃（0.01grade） |
| Environmental humidity |
≤85% |
| IP rating |
IP57 Dustproof and waterproof |

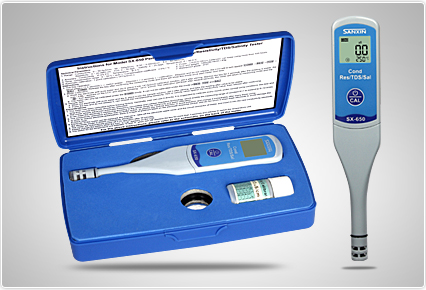

SX650 Conductivity/TDS/Sal./Res. Tester
● One among SX600 series, the most cost effective pen conductivity tester.
● Compared with similar products: the widest measurement scope 0~50mS/cm.
● Automatic calibration and automatic temperature compensation.
● IP57 waterproof, replaceable batteries, equipped with calibration solution and
portable case.More
|
Cond.
|
Range
Accuracy
ATC
Auto. Calibration
|
Cond.：0~50.0μS/cm 50~500μS/cm
0.50~5.00mS/cm 5.0~50.0mS/cm
TDS: 0 ~ 35.0g/L
Sal.： 0 ~ 25ppt
Res.：0 ~ 20.0MΩ·cm
±1.0% FS
0 ~ 50℃（Auto.），Compensation Factor：2.0%
/℃
1 point（1413μS/cm）
|
|
Temp.
|
Range
Resolution
Accuray
|
0 ~ 50℃
0.1℃
|
|
Other Specifications
|
Power
Dimension & Weight
Quality&Safe Certificate
|
CR2032 lithium batteries×2，continuous
use for over 100 hours
Meter：148×29×14mm / 43g Case：168×96×28mm
/ 180g
ISO9001:2008, CE and CMC
|
|
Working Conditions
|
IPRating
|
IP57 Dustproof & Waterproof
|
5021 Conductivity Pocket Tester
● Cheap pen conductivity meter.
● Automatic calibration, ATC
● With conductivity calibration solution.
● IP57 waterproof rating.
| Conductivity |
Measuring range |
Divided into three sections, automatic switching range：
（0~99.9）μS/cm
（100~999）μS/cm
（1.00~10.00）mS/cm |
| Resolution |
0.1/1μS/cm；0.01 mS/cm |
| Accuracy |
±1%FS |
| Temperature compensation |
(0~50)℃（Auto） |
| Other technical parameters |
Automatic Calibration |
1 point calibration（1413μS/cm） |
| Power |
2 AAA batteries, 1.5V × 2, more than 100 hours of continuous using
|
| Size and Weight |
39×25×176 mm/ 87g |
| Waterproof |
IP57 |
