Coating thickness gauge

Application of coating thickness gauge:used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers,oil storage tanks, etc. in industries of petroleum,  shipbuilding, power station, and machine manufacturing.

F type coating thickness gauge can measure ferrous substrates.

N type coating thickness gauges can measure non-ferrous substrates.

NF type coating thickness gauge can measure both ferrous and Non-ferrous substrates.

闁靛棴鎷?/p>
coating thickness gauge

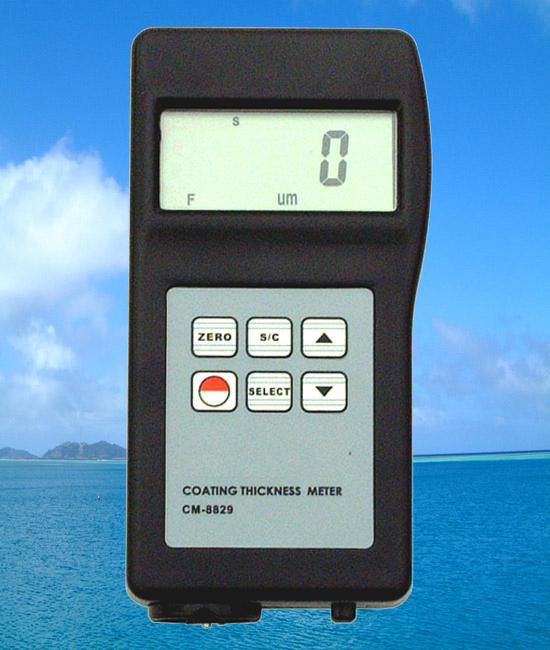

Coating thickness meter Model: CM8829

In built probe(s)

Operating principle: magnetic induction/eddy current (F/NF)

Measuring range:0-1250um/0-50mil

Resolution; 0.1/1

Accuracy: 閸?-3%n or 閸?.5um

Min. measuring area: 6mm

Min. sample thickness: 0.3mm

Battery indicator: low battery indicator

Metric/ imperial: convertible

Power supply: 4x1.5V AAA(UM-4)battery

Auto power off

Operating conditions:0-+45闁?/span>(32闁?/span>-104闁?/span>),闁?0%RH

Dimensions: 126x65x27mm

weight: 81g(not including battery)

Optional accessories: other range 0-200um to 15000um
