anémomètre AM-4836V/AM-4836C

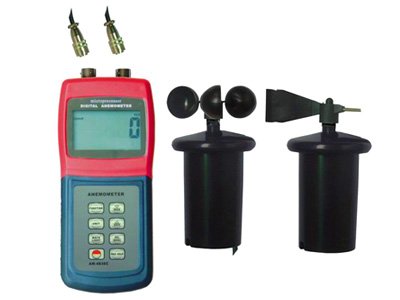

anémomètre AM-4836C

1.APPLICATION
Widely used in data collection for boiler, refrigeration industry, ventilation duct, environment monitor, navigation measurement, weather forecast, collection of the weather datum for outdoor busywork and fire department

2. SPECIFICATIONS
2.1 General Specifications
Display 0.5" (13 mm) 4-digit LCD
Measurement units Air Velocity: m/s, km/h, ft/min,

knots
Air Flow: CMM (m³/min);
CFM (ft³/min)
Beaufort Scale: Force
Wave Height: m
Direction: °from the North direction
Temp: °C & °F
Data hold Maximum Value
Data memorized 24 groups
Sampling rate reading per second approx
Sensors Air velocity/flow sensor: 3-cup probe
Direction probe: Low friction probe
Temperature sensor: Precision thermistor
Automatic Power off 0-9 minutes set by users
Data Output RS 232 C serial interface
Operating Temperature 14°F to 140°F (-10°C to 60°C)
Operating Humidity Max. 80% RH
Power Supply 4x1.5AAA size
Weight 260g (0.57lb) including batteries & probe
Dimensions Main instrument: 156x67x28mm
(6.1x2.6x1.1")
Velocity sensor: 65x65x115mm
Direction sensor: 86x69x115mm
Optional Accessories Cable+Software for RS232C or USB
2.2 Range Specifications
Air Velocity Range Resolution Accuracy
m/s (meters per sec) 0.4-45.0 0.1 m/s ± (2%+0.1m/s)
km/h (kilo-meters/hour) 1.4-162.0 0.1 km/hr ±(2% +0.1km/hr)
ft/min (feet per minute) 80-8860 0.1 ft/min ±(2% + 1ft/min)
knots (nautical MPH) 0.8-88.0 0.1 knots ±(2% +0.1 nots)
Air Flow
CMM (cubic meters/min) 0-9999 0.001 to1 ±(2% +1m³/min)
CFM (cubic ft/min) 0-9999 0.001 to1 ±(2% +1ft³/min)
Beaufort Scale 0-12 0.1 ±0.5
Direction 0-360° 22.5° ±22.5°
Wave Height 0-14 0.1 ±0.1
Air Temperature 14 - 140℉ 0.1 ℉ 0.9 ℉
-10-60 ℃ 0.1 ℃ 0.5 ℃

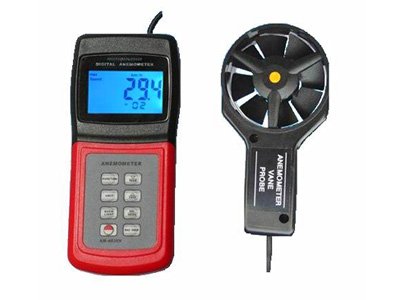

anémomètre AM-4836V

Outil de précision , électronique et digital pour la mesure de la vitesse du Vent

différentes unitée : M/s - Ft/min - Knots - Km/hr

0.4 à 45.0 m/s

1.4 à 162.0 km/h

80 à 8860 ft/min

0.8 à 88 Knots

Précision +-2% +2d

affichage: 0.1 /1

Capteur de température °C °F 0 à 50 °C

Mémoire valeur maxi

Mémoire des mesures (24 mémoires)

humidité maxi 80%

piles 4 piles 1.5V AAA fournis

extinction automatique 9Mns , réglage par l'utilisateur

Capteur 72mm de diamètre

Longueur de fil 1.50 mètre

Dim 156* 67*28mm

poids 260g

en option cable RS232 + soft

anémomètre AR856

Features

Digital anemometer in measure wind speed as the basic function, increase the calculation, measuring temperature and relative air temperature with a combination of a variety of functions such as series of instrumentation. This is a kind of portable, has the low speed, multifunctional intellectualized measurement in the basic instruments, heating, ventilation, air conditioning, environmental protection, energy conservation monitoring, meteorology, agriculture, refrigerating, drying, labor health survey, clean workshop, chemical fiber and textile, various aspects of wind laboratory wide range of purposes



SPECIFICATIONS
 Wind Speed Measuring Range 0.3~45m/s
 Accuracy of Temperature ±3%±0.1dgt
 Air Velocity Unit m/s,Ft/min,Knots,km/h,Mph
 Wind Volume Range 0~999900m3/min
Max/Min wind speed measurin √
Temperature Measuring Range 0~45℃
Accuracy of Temperature ±2℃
 ℃/℉ Selection √
Backlight Display √
Low Battery Indication √
Analog Quantity Display
 √
Resolution 0.1m/s
USB Transmission USD
 Data Store 500 stock
 PACKING INFORMATION
Power 9V DC battery
Product Net Weight 280g
Product Size 175*165*50mm
Packing Gift box
 Standard Quantity Per Carton  20pcs
 Standard Carton Size  62.5*45*28.5cm
Standard Carton Gross Weight  11kg
anémomètre AR856A

Digital anemometer in measure wind speed as the basic function, increase the calculation, measuring temperature and relative air temperature with a combination of a variety of functions such as series of instrumentation. This is a kind of portable, has the low speed, multifunctional intellectualized measurement in the basic instruments, heating, ventilation, air conditioning, environmental protection, energy conservation monitoring, meteorology, agriculture, refrigerating, drying, labor health survey, clean workshop, chemical fiber and textile, various aspects of wind laboratory wide range of purposes

 SPECIFICATIONS
 Wind Speed Measuring Range 0.3~45m/s
 Accuracy of Temperature ±3%±0.1dgt
 Air Velocity Unit m/s,Ft/min,Knots,km/h,Mph
 Wind Volume Range 0~999900m3/min
Max/Min wind speed measurin √
Temperature Measuring Range 0~45℃
Accuracy of Temperature ±2℃
 Infrared Temperature Measurement -50~300℃
Backlight Display √
Low Battery Indication √
Analog Quantity Display
 √
Resolution 0.1m/s
USB Transmission USD
 Data Store 500 stock
 PACKING INFORMATION
Power 9V DC battery
Product Net Weight 300g
Product Size 170*160*49mm
Packing Gift box
 Standard Quantity Per Carton  12pcs
 Standard Carton Size  62.5*45*28.5cm
Standard Carton Gross Weight  13kg
anémomètre AR836+
SPECIFICATIONS
 Wind Speed Measuring Range 0.3~45m/s
 Accuracy of Temperature ±3%±0.1dgt
 Air Velocity Unit m/s,Ft/min,Knots,km/h,Mph
 Average wind speed measuring √
Max/Min wind speed measurin √
Temperature Measuring Range 0~45℃
Accuracy of Temperature ±2℃
 ℃/℉ Selection √
Backlight Display √
Low Battery Indication √
Analog Quantity Display
 √
Resolution 0.1m/s
USB Transmission ---
 Data Store ---
 PACKING INFORMATION
Power 9V DC battery
Product Net Weight 240g
Product Size 170*160*49mm
Packing Gift box
 Standard Quantity Per Carton  20pcs
 Standard Carton Size  62.5*45*28.5cm
Standard Carton Gross Weight  16.5kg
anémomètre AR826+
 SPECIFICATIONS
 Wind Speed Measuring Range 0.3~45m/s
 Accuracy of Temperature ±3%±0.1dgt
 Air Velocity Unit m/s,Ft/min,Knots,km/h,Mph
 Average wind speed measuring √
Max/Min wind speed measurin √
Temperature Measuring Range ---
Accuracy of Temperature ---
 ℃/℉ Selection ---
Backlight Display √
Low Battery Indication √
Analog Quantity Display
 √
Resolution 0.1m/s
USB Transmission ---
 Data Store ---
 PACKING INFORMATION
Power 9V DC battery
Product Net Weight 240g
Product Size 170*160*49mm
Packing Gift box
 Standard Quantity Per Carton  20pcs
 Standard Carton Size  62.5*45*28.5cm
Standard Carton Gross Weight  16.5kg
anémomètre AR816+
SPECIFICATIONS
 Wind Speed Measuring Range 0.3~30m/s
 Accuracy of Temperature ±5%±0.1dgt
 Air Velocity Unit m/s,Ft/min,Knots,km/h,Mph
 Average wind speed measuring √
Max/Min wind speed measurin √
Temperature Measuring Range 0~45℃
Accuracy of Temperature ±2℃
 ℃/℉ Selection √
Backlight Display √
 Low Battery Indication √
Analog Quantity Display
 √
Resolution 0.1m/s
USB Transmission ---
 Data Store ---
 PACKING INFORMATION
Power CR2032 3.0V
Product Net Weight 52g
Product Size  105*40*15mm
Packing Blister
 Standard Quantity Per Carton  80pcs
 Standard Carton Size  38*38*44cm
Standard Carton Gross Weight  9.5kg
